Trouvez l’échappement Supersprint adapté à votre véhicule
marque
Ferrari
modèle
FERRARI 550
type
FERRARI 550 Barchetta V12 (485 Hp) '00 -> '02

FERRARI 550 Barchetta V12 (485 Hp) '00 -> '02

Système d'échappement
Tout le système
100% Acier inoxydable système
Centre section 100% Acier inoxydable
Silencieux arrière 100% Acier inoxydable
Filtrer par
Composantes
Kit d’échappement
Collecteur
Turbo Downpipe
Front
Central
Arrière
Embout d’échappement
Tube de liaison
Prix (€)
606,00 6 253,00
Caractéristiques
Avec homologation CE
Composant homologué C.E.E. valable uniquement en cas d'utilisation de l'échappement arrière spécifique homologué Supersprint
Conforme à la législation Européenne 70/157.
Même si le modèle exact ou motorisation n’est pas mentionné dans la liste des véhicules, l’échappement reste homologué.
Conforme à la norme européenne N° 70/157/EEC concernant le niveau sonore..
Compatible avec le convertisseur catalytique d'origine
Produit discontinué. Disponible jusqu'à épuisement du stock
Bouchon fileté pour le capteur d'oxygène fourni
Avec certificat d'authenticité
alias : Échappement sport pour FERRARI 550 Barchetta
  • Graphiques de puissance
  • Système d'échappement
  • Legenda
  • Avertissements

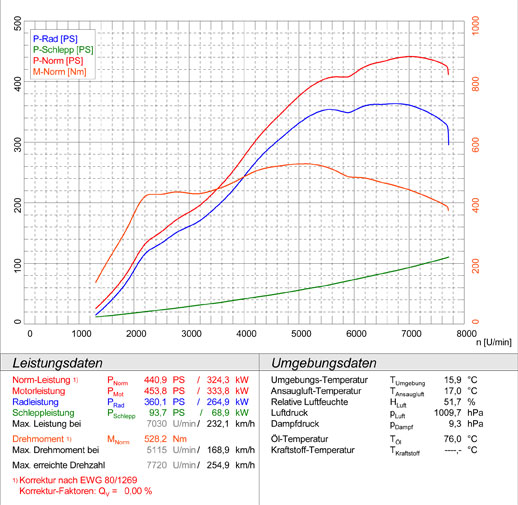

FERRARI 550 Barchetta V12 (485 Hp) '00 -> '02
OEM
Claimed data:
Horsepower 485 Hp @ 7000 rpm
Torque 569 Nm @ 5000 rpm

Actual data:
Horsepower 440,9 Hp @ 7030 rpm
Torque 528,2 Nm @ 5115 rpm.
Download pdf chart (98Kb)

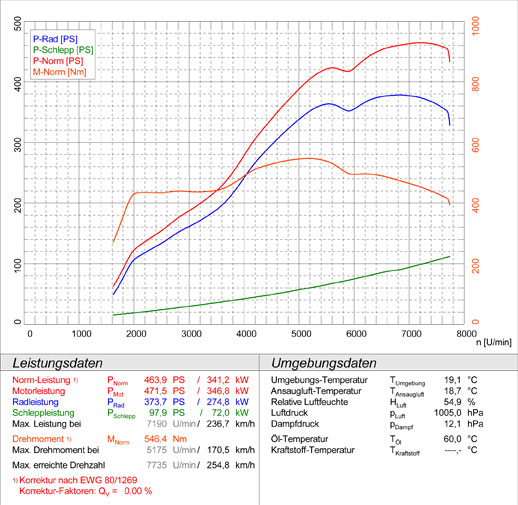

FERRARI 550 Barchetta V12 (485 Hp) '00 -> '02
Supersprint:
- Manifold Right- Left 390801
- Metal kat Right- Left 390802 / 390822
- Centre pipe 390813
- Connect. pipes 390843
- Rear exh. Right- Left 390806 / 390836

Actual data:
Horsepower 463,9 Hp @ 7190 rpm
Torque 546,4 Nm @ 5175 rpm.
Download pdf chart (96,7Kb)

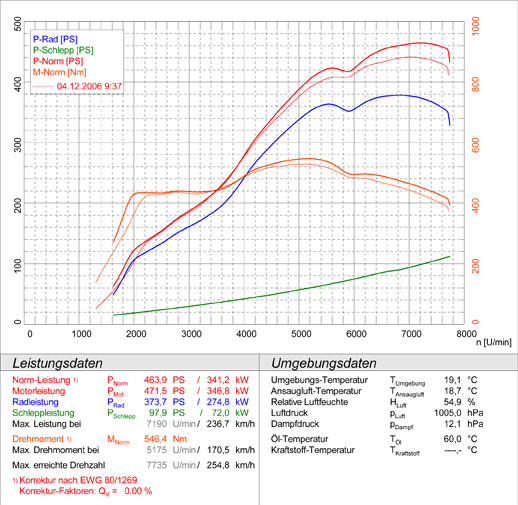

FERRARI 550 Barchetta V12 (485 Hp) '00 -> '02
Stock Vs Supersprint
Download pdf chart (89,8Kb)
Here is the Supersprint Performance #headers and full exhaust for the 2000-2002 Ferrari 550 Barchetta.

This beautiful sports car has a great, unique style, and has already risen to iconic status.

However, for some reason the engine is far from performing to its full potential; blame it on to the resctrictive design of the std. catalytics, and to the insufficiently sized, small diameter exhaust.

We can proudly say that our system does justice to the awesome V12 italian powerplant, yelding to a massive increase in performance, guaranteeing a substantial saving in weight of - 40 kg, and an unbelievable sound at the same time.

The Supersprint long tube headers and the dual-inlet port, R&L catalytic system are the key components of the entire exhaust, being instrumental for the massive gains in torque from the midrange on up, and in peak horsepower (+ 25 Hp).

The generous, high-revving nature of the V12 N/A engine and its unique sound are both chocked down by this redundant, 85 kg heavy standard exhaust.

Our Supersprint system eliminates all of the ballast, replacing it with a lightweight, race inspired, equal-lenght primary stainless headers, mated to high volume, HJS Motorsport R&L cats.

Our oversize diameter tubing exhaust complements the free-flowing characteristics of the Headers to perfection.

Better Acceleration. Less Weight. More Consistent Performance, thanks to Lower Engine Temperatures. A Gorgeous V12 Sound. All of these features built within one exhaust; the Supersprint.

The Supersprint headers system is the most effective performance addition to the 550 Barchetta V12, bar none.

For style points, we offer two distinct tail pipe design options.

Smaller diameter, round tips, equivalent to stock in overall dimensions, and quad-oval, for a perfect match to the diffuser's valence wide openings.

Easy bolt-on installation, superior resistence and durability, thanks to the 304 high grade stainless steel material, and to the flawless build quality.
As always, these fine performance exhausts are handcrafted and welded, individually, at the Supersprint Factory in Italy.
Avec homologation CE
Avec homologation CE
Composant homologué C.E.E. valable uniquement en cas d'utilisation de l'échappement arrière spécifique homologué Supersprint
Composant homologué C.E.E. valable uniquement en cas d'utilisation de l'échappement arrière spécifique homologué Supersprint
Conforme à la législation Européenne 70/157.
Même si le modèle exact ou motorisation n’est pas mentionné dans la liste des véhicules, l’échappement reste homologué.
Conforme à la législation Européenne 70/157.
Même si le modèle exact ou motorisation n’est pas mentionné dans la liste des véhicules, l’échappement reste homologué.
Conforme à la norme européenne N° 70/157/EEC concernant le niveau sonore..
Conforme à la norme européenne N° 70/157/EEC concernant le niveau sonore..
Compatible avec le convertisseur catalytique d'origine
Compatible avec le convertisseur catalytique d'origine
Produit discontinué. Disponible jusqu'à épuisement du stock
Produit discontinué. Disponible jusqu'à épuisement du stock
Bouchon fileté pour le capteur d'oxygène fourni
Bouchon fileté pour le capteur d'oxygène fourni
Avec certificat d'authenticité
Avec certificat d'authenticité
Systems for replacement of kat for OBD II car models (with lambda sensors before and after the kat.)

These systems can only be used for racing purpose exclusively, in conjunction with the modifications of the engine management system. If used with a stock “ECU”, malfunctions may occur. All modifications must be carried out by qualified personnel only, under the liability of the car owner and at his expense.

Supersprint guarantee is limited to the quality, workmanship and correctly fitting to the intended car model for all race products.
