大众 高尔夫 VI 1.6 TDi (105 Hp) 2009 -> 2012

排气系统：
系统全部
选择 - 大众 高尔夫 VI 1.6 TDi (105 Hp) 2009 -> 2012
Exhaust with Right + Left exit, 100% Stainless steel - Rear bumper must be trimmed to fit - Full kit only
Exhaust with Right + Left exit for GTI bumper - 100% Stainless steel - Full kit only
筛选依据
组件
套件選項
Headers
Turbo Downpipe
Front Section
Mid Section
Rear Section
Tail pipe
Connecting pipe
价格 (€)
68.00 588.00
特征
具有 ECC 認證
E.E.C.元件認證僅限於安裝於特定 Supersprint 認證的後排氣管。
符合噪音法規 70/157/EEC。
然而，特定型號或引擎類型可能不包括在此排氣管合法發行的正式車輛清單中。
符合噪音法規 70/157/EEC。
與 OEM 催化轉換器相容
停產產品。售完即止
提供氧氣感測器的螺紋塞
具有經典排氣設計的合格證書
别名: VW GOLF mk6 1.6 TDi 的运动型排气管
  • 排氣系統
  • 功率圖
  • 圖片
  • 詞彙
  • 警告事項
Sport exhaust for VW Golf 6 1.6 TDI
100% stainless steel

Full system Supersprint composed by:

-Turbo downpipe for DPF replacement, available with high flow catalytic converter on request.
Allows power increase, ECU tune compulsory.

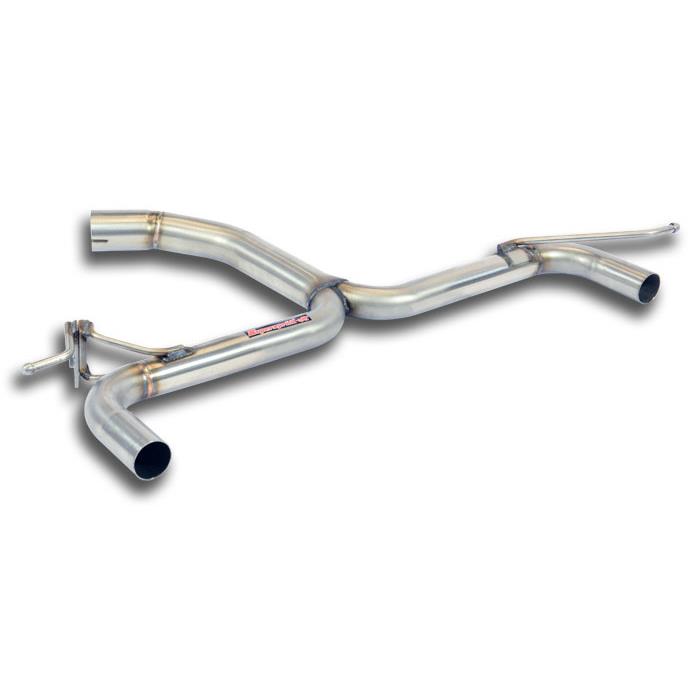

- Centre pipe, replaces centre resonator (the only one present on the 1.6 TDI)

- Rear pipe, available in different tailpipes solutions:
Single tip on left 90mm, for stock bumper without any modification
Twin tip on the left, for modified bumper or 2.0 TDI model diffuser
Dual tips, one 90mm tip for each side, for stock left side valance and right side trimmed.
Quad exhaust, two tips for each side, with trimming on both sides
Dual oval tips, with trimming on both sides.
GTI replica, one 100mm tips for each side, for GTI bumper and diffuser (GTI diffuser not compatible with normal bumper)
R replica, one 100mm tips for each side closer to the centre of the car, for R-Line bumper and R diffuser (R diffuser not compatible with normal bumper)

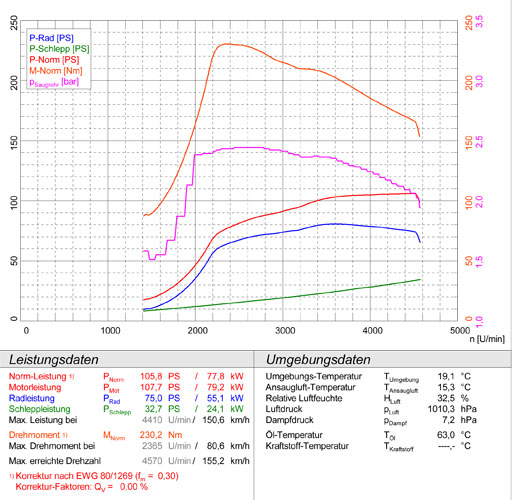

大众 高尔夫 VI 1.6 TDi (105 Hp) 2009 -> 2012
OEM:
Claimed data:
Horsepower 105 Hp @ 4400 rpm
Torque 250 Nm @ 1500-2500 rpm

Actual data:
Horsepower 105,8 Hp @ 4410 rpm
Torque 230,2 Nm @ 2365 rpm
Download pdf chart (152 Kb)

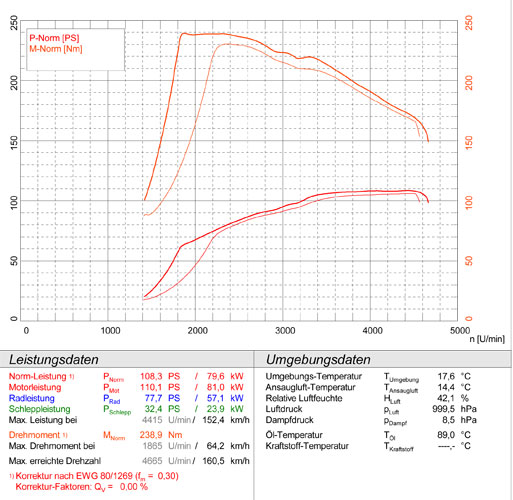

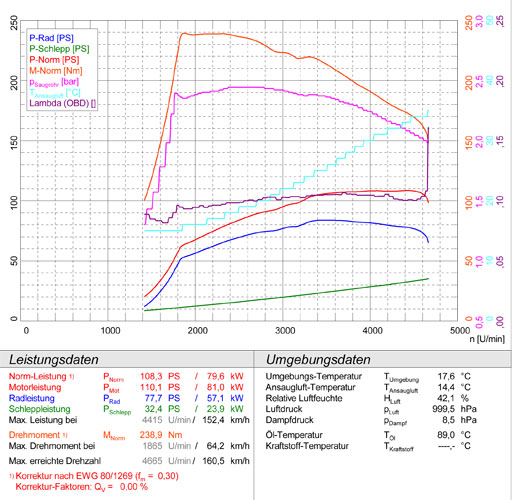

大众 高尔夫 VI 1.6 TDi (105 Hp) 2009 -> 2012
Supersprint:
- Turbo downpipe kit (replaces diesel soot filter) 764511
- Sport catalytic converter
- Stock centre pipe
- Rear pipe 764514
- Endpipe OO80 764516

Actual data:
Horsepower 108,3 Hp @ 4415 rpm
Torque 238,9 Nm @ 1865 rpm
Download pdf chart (156 Kb)
大众 高尔夫 VI 1.6 TDi (105 Hp) 2009 -> 2012
Stock VS Supersprint
Download pdf chart (139 Kb)

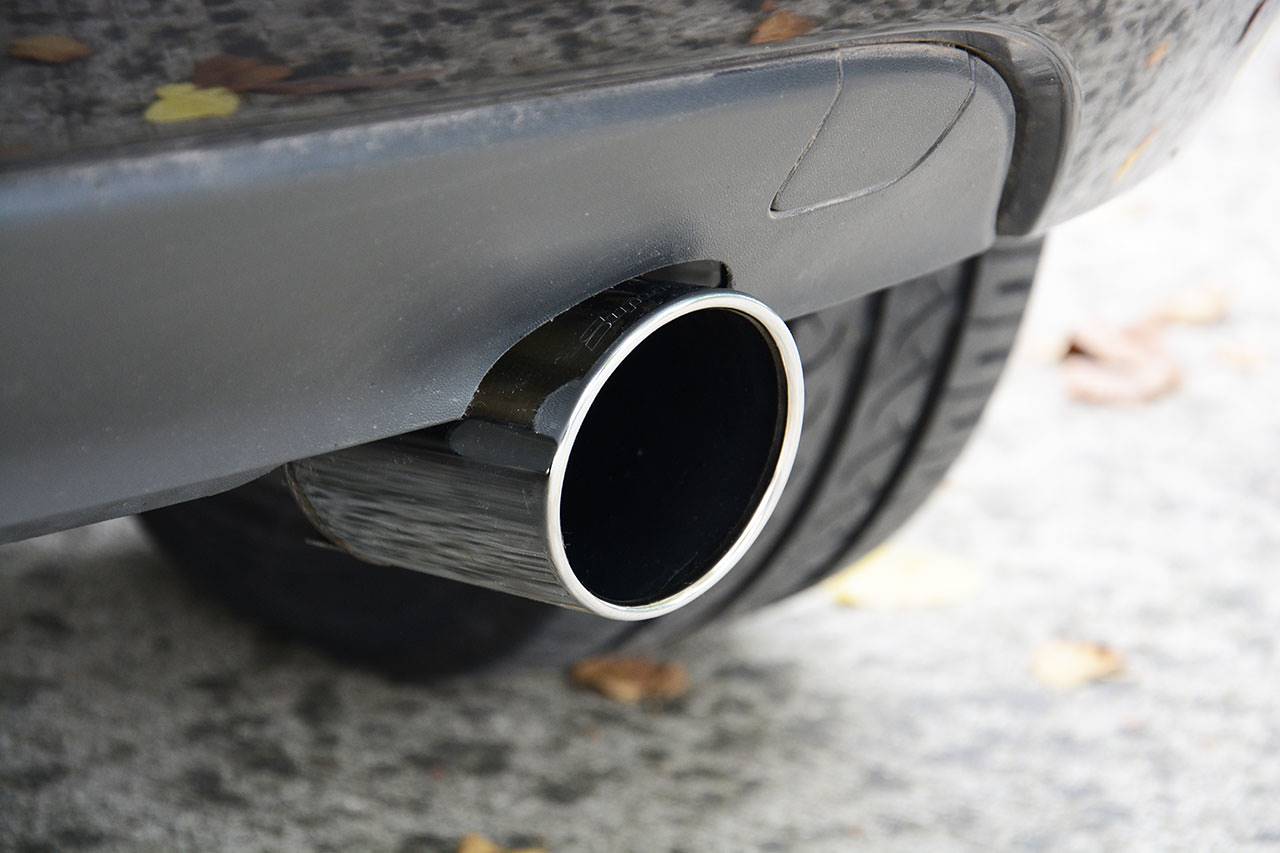

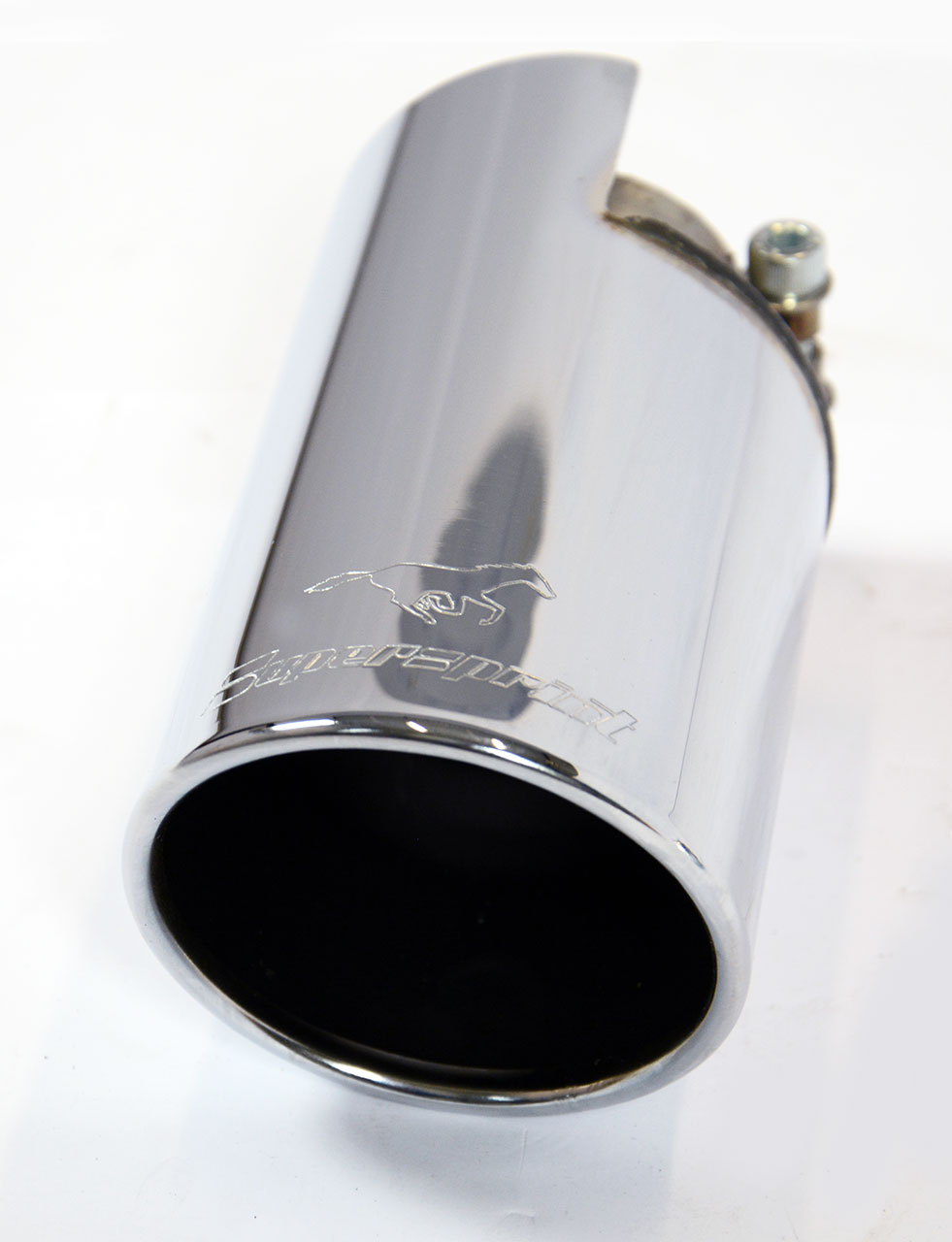

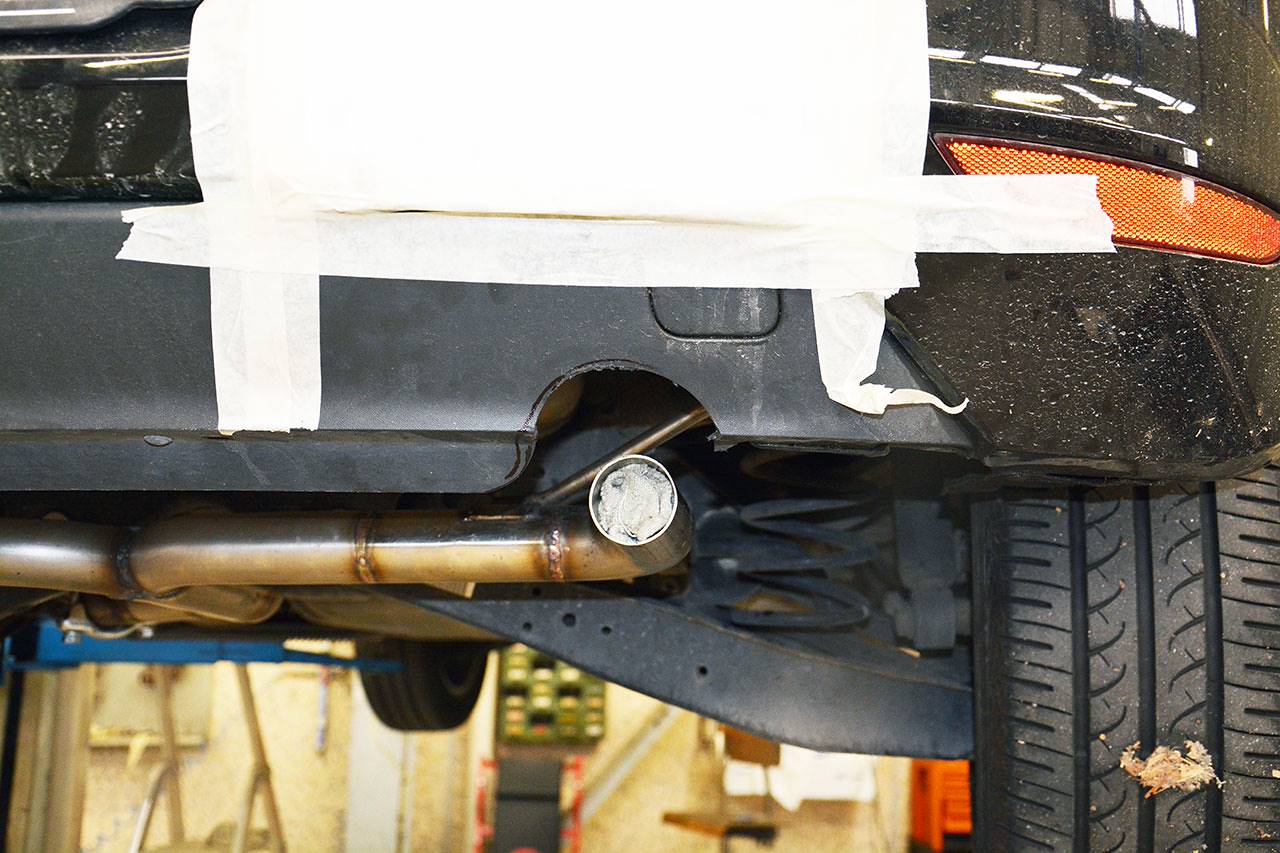

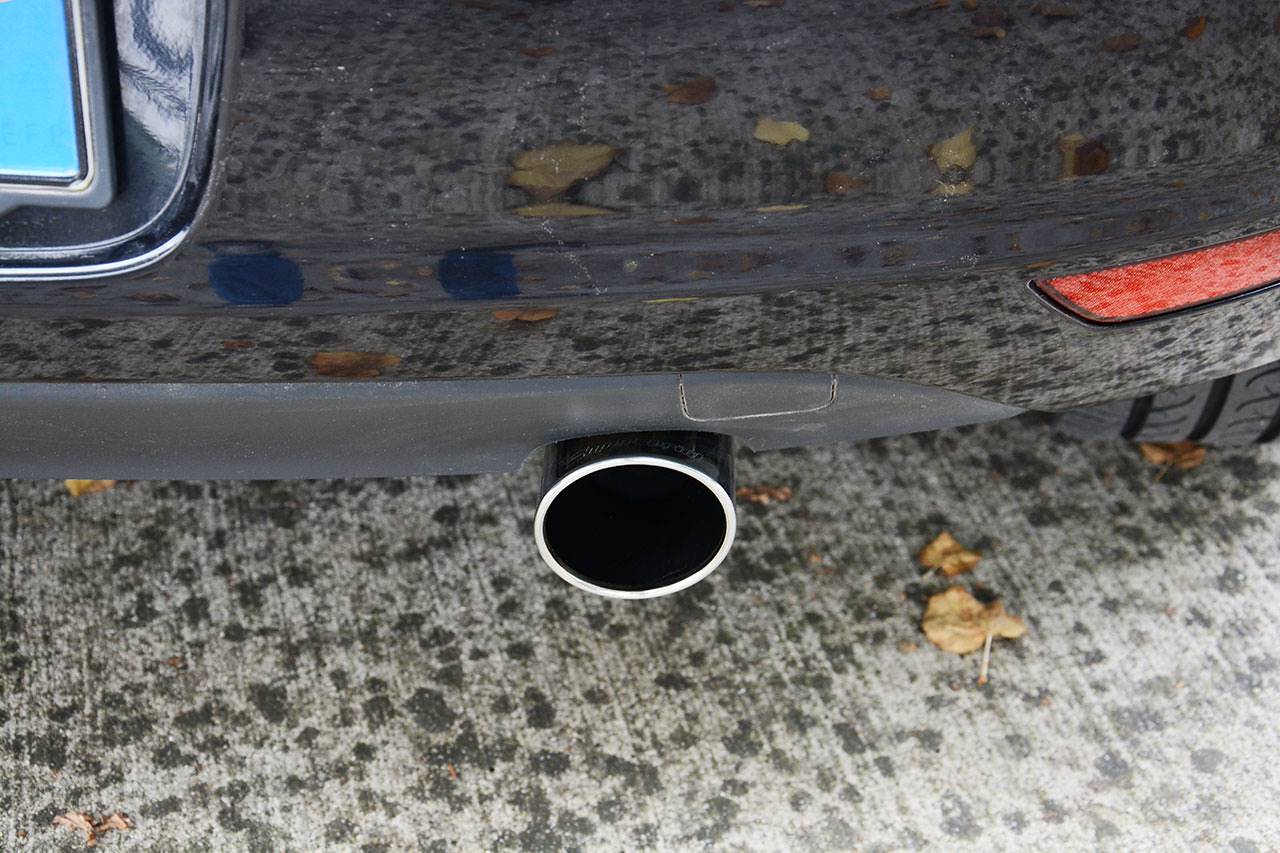

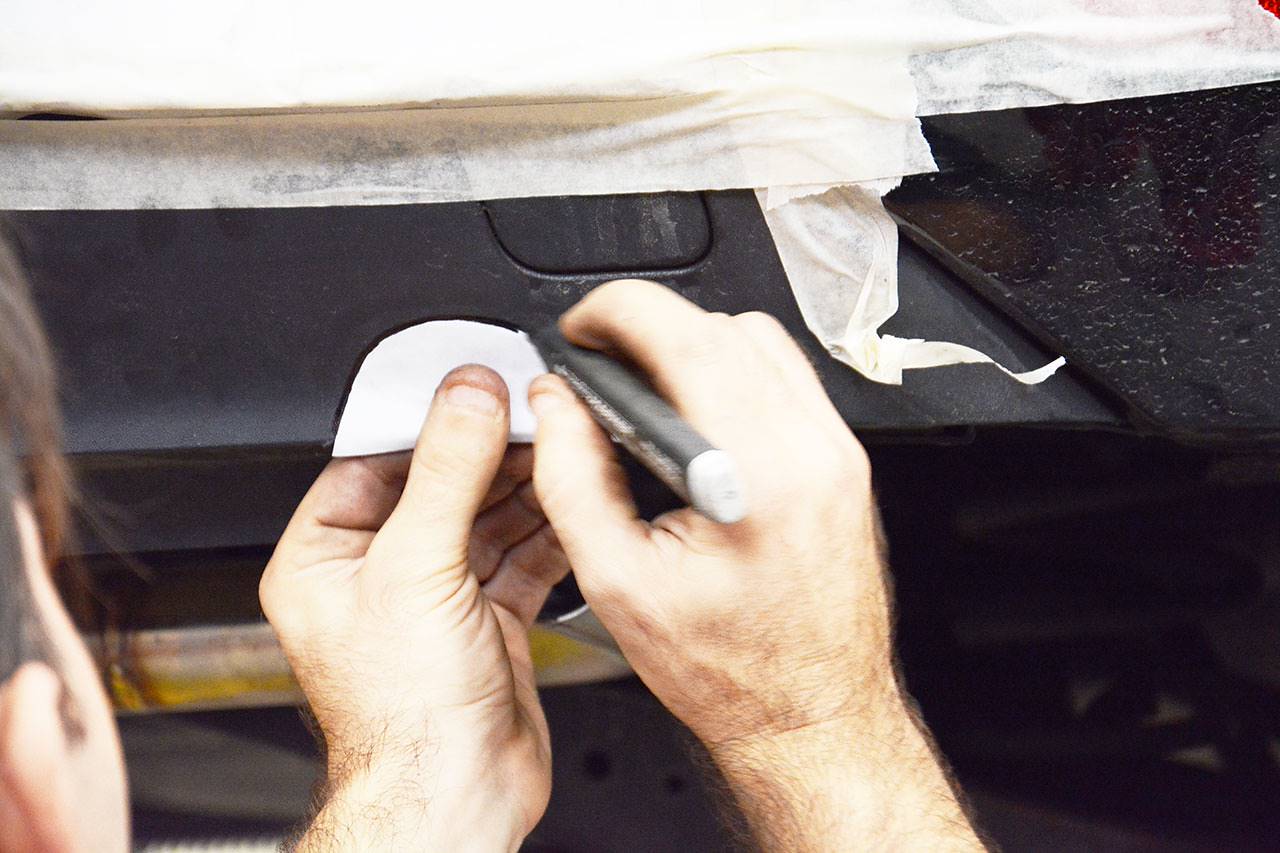

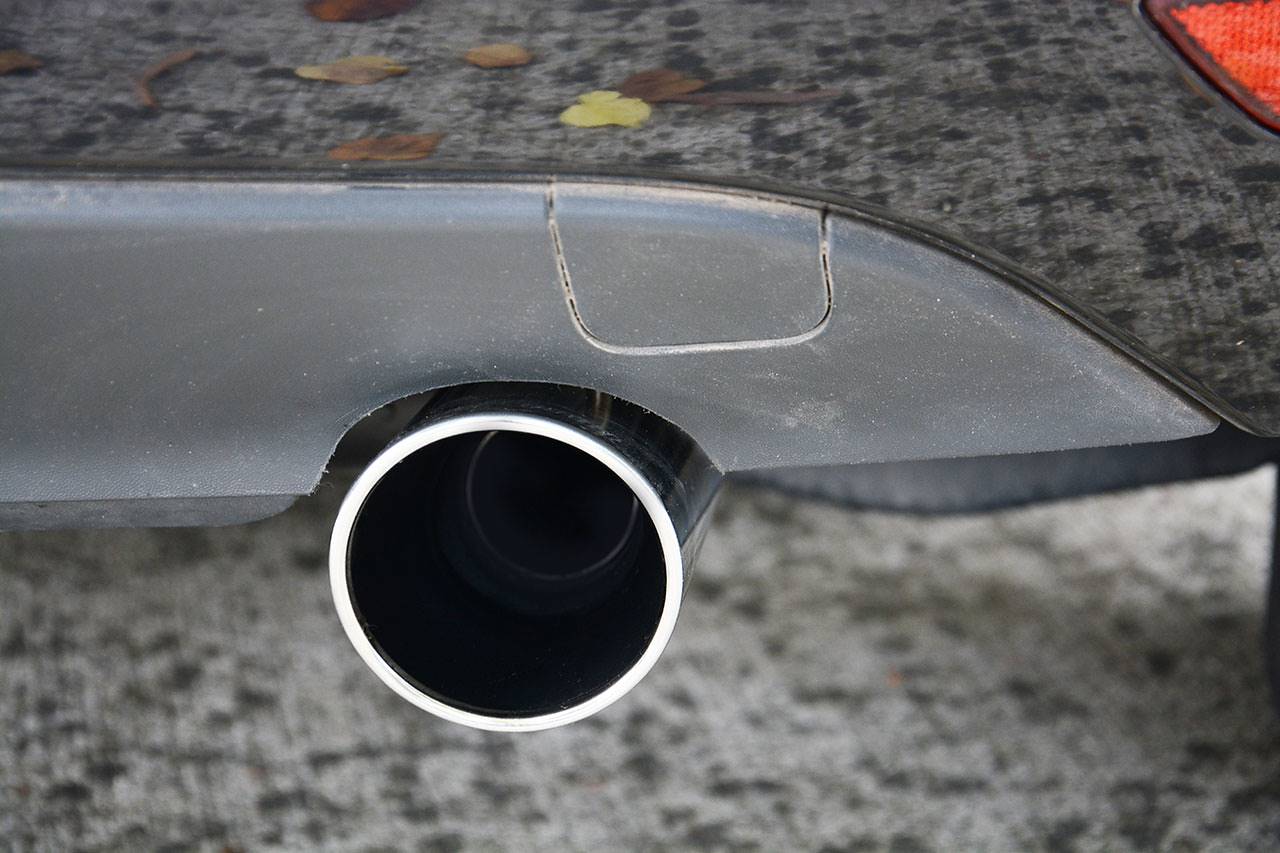

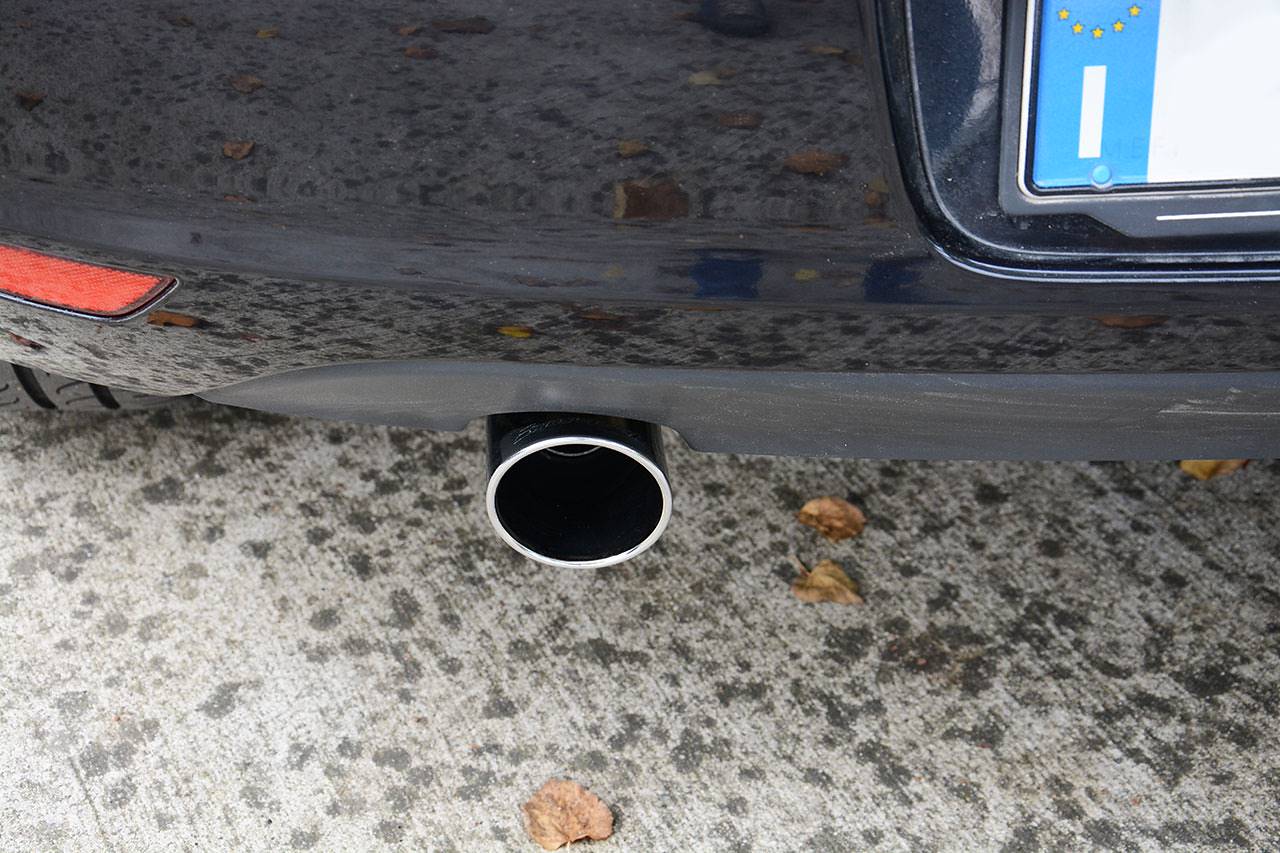

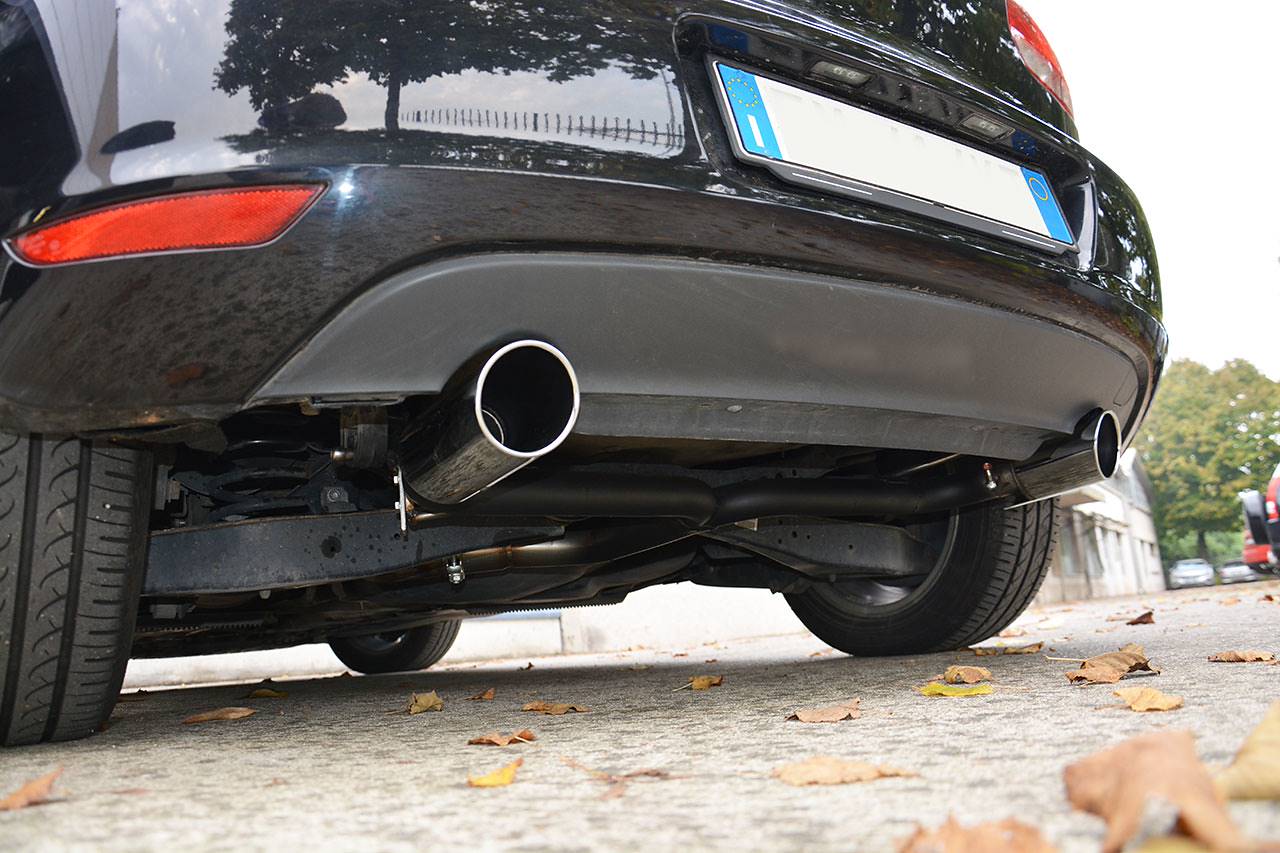

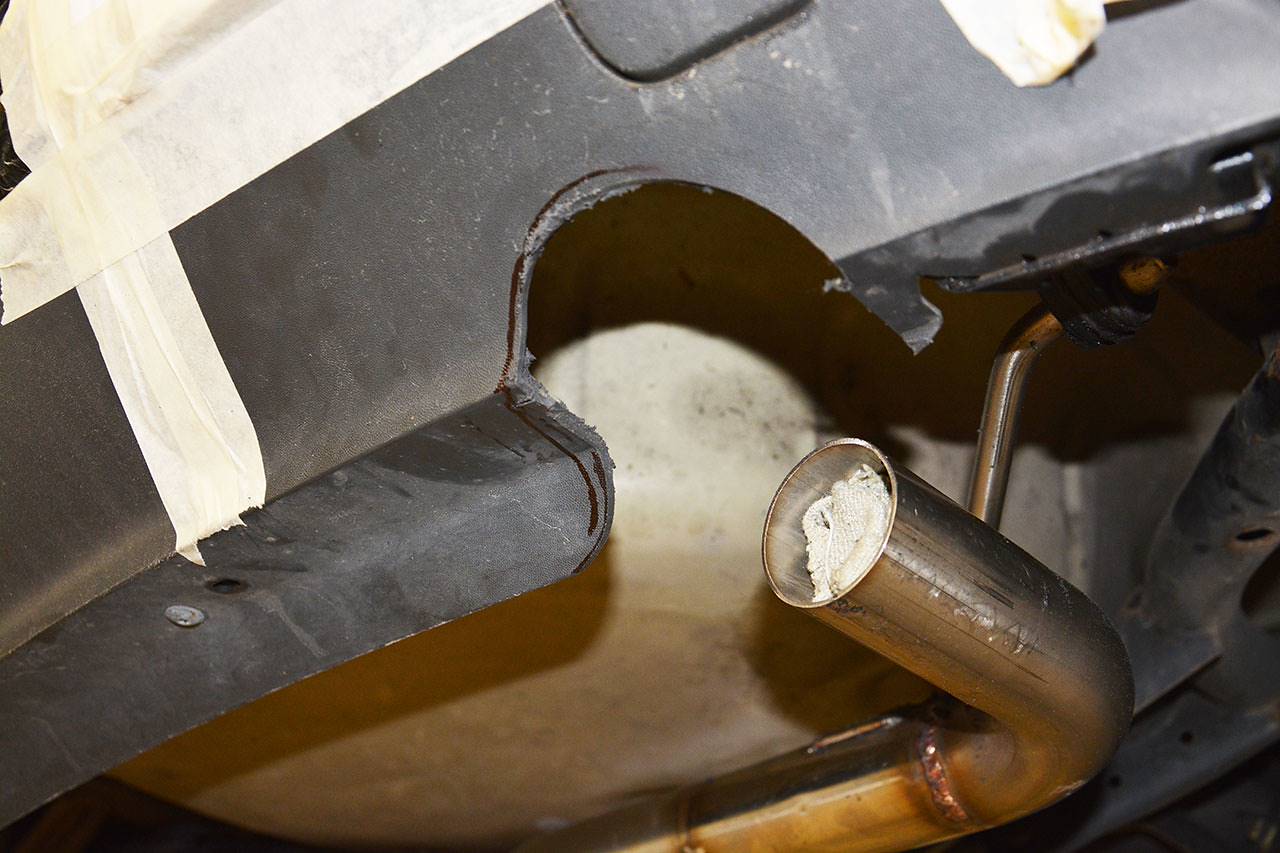

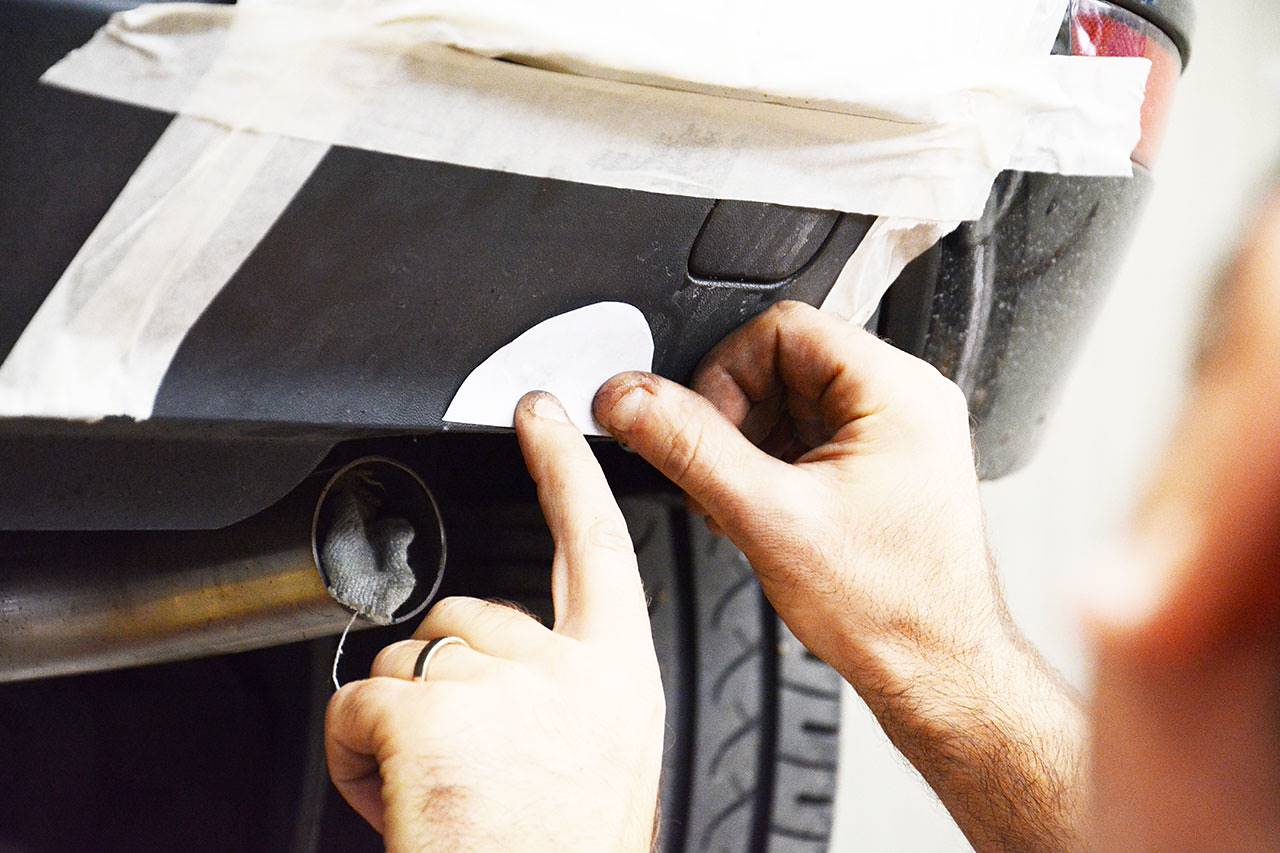

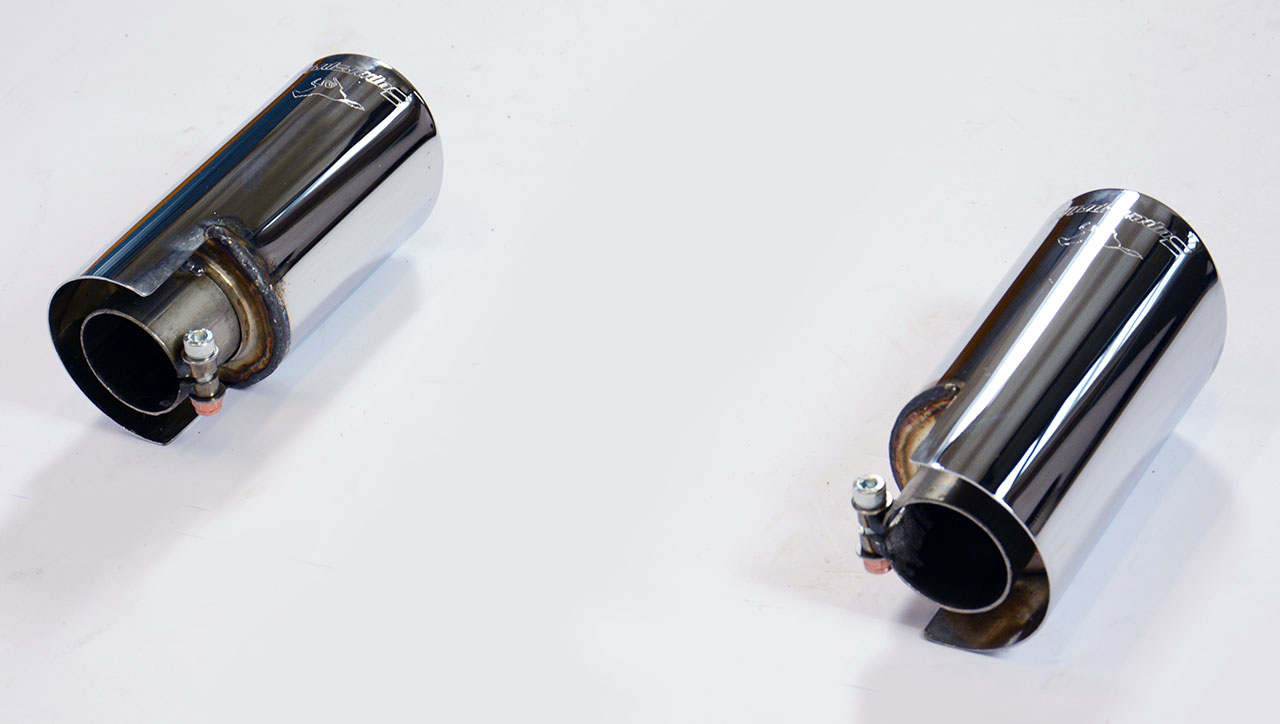

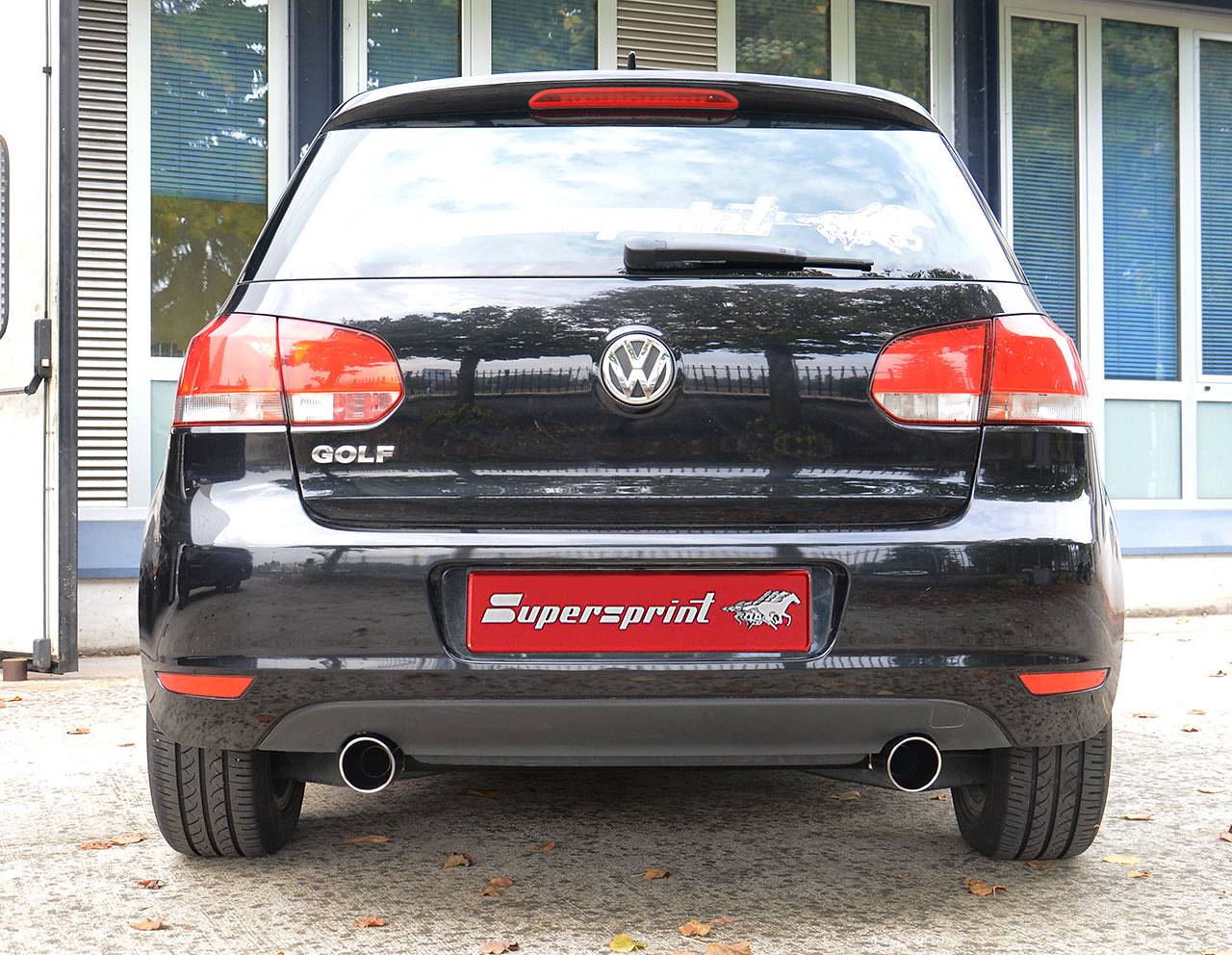

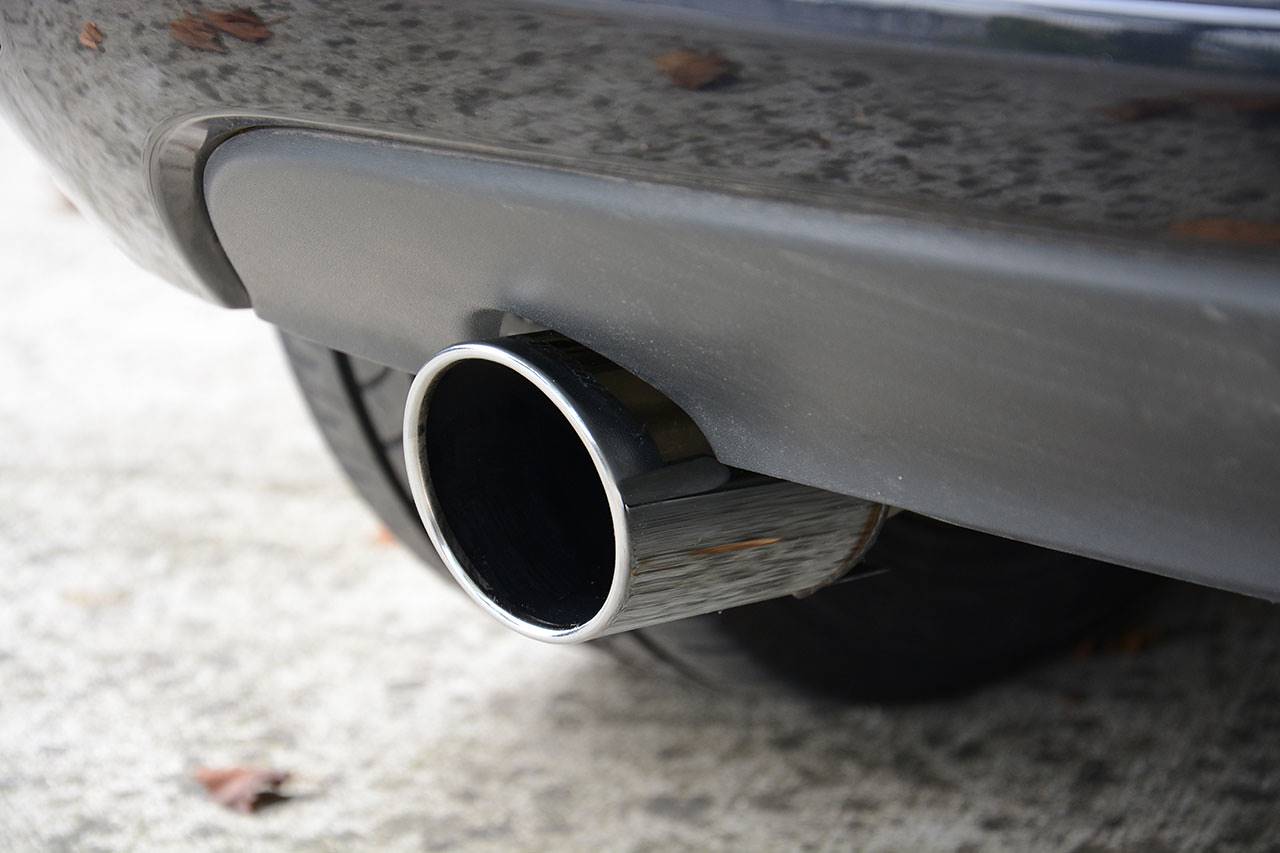

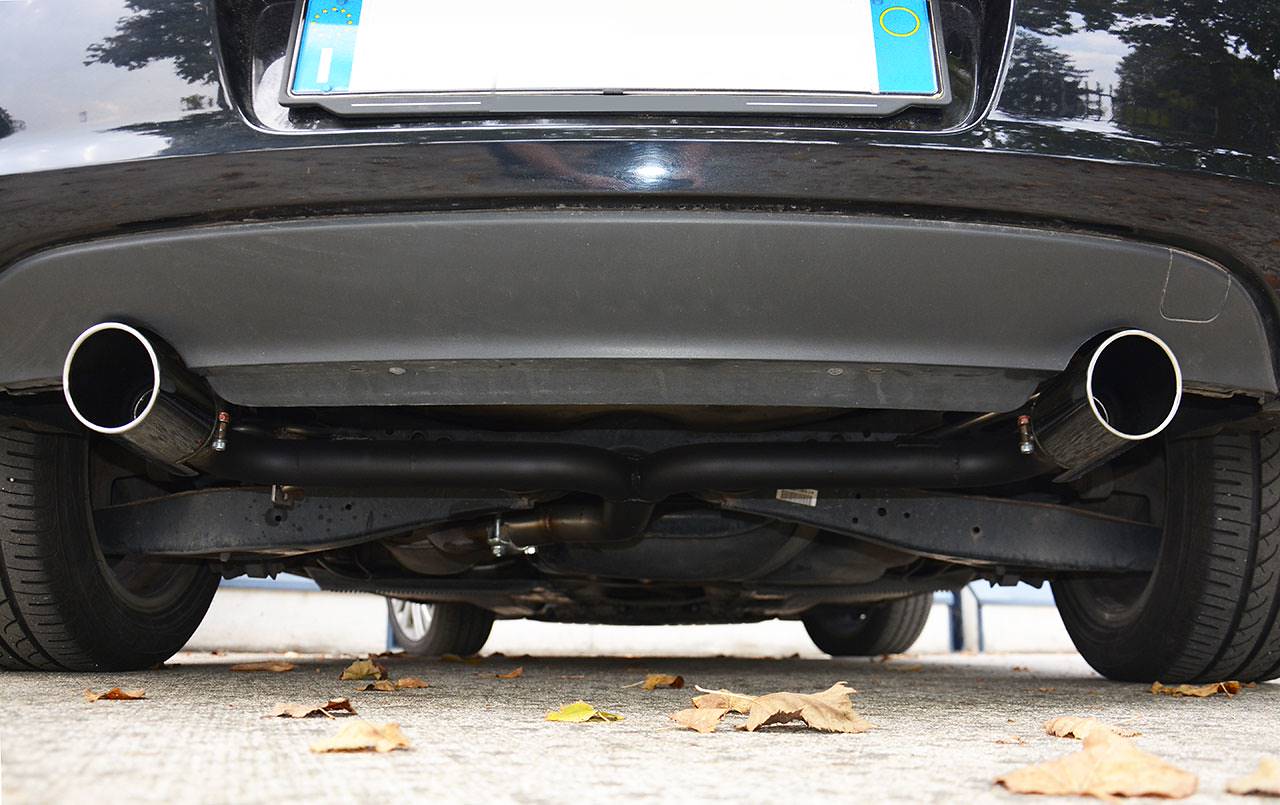

Dual tips 90mm 764614 for Golf 6 1.6 TDIDual tips 90mm 764614 for Golf 6 1.6 TDIDual tips 90mm 764614 for Golf 6 1.6 TDI right sideDual tips 90mm 764614 for Golf 6 1.6 TDI right sideGolf 6 1.6 TDI dual exhaust - paper template from left side valanceGolf 6 1.6 TDI dual exhaust - paper template from left side valanceGolf 6 1.6 TDI dual exhaust - paper template applied on right sideGolf 6 1.6 TDI dual exhaust - paper template applied on right sideGolf 6 1.6 TDI dual exhaust - paper template applied on right side and cutting line tracingGolf 6 1.6 TDI dual exhaust - paper template applied on right side and cutting line tracingGolf 6 1.6 TDI dual exhaust right side valance cutGolf 6 1.6 TDI dual exhaust right side valance cutGolf 6 1.6 TDI dual exhaust right side valance cutGolf 6 1.6 TDI dual exhaust right side valance cutGolf 6 1.6 TDI 764614 90mm tip left sideGolf 6 1.6 TDI 764614 90mm tip left sideGolf 6 1.6 TDI 764614 90mm tip - right side with cutGolf 6 1.6 TDI 764614 90mm tip - right side with cutGolf 6 1.6 TDI 764614 90mm tip - right side with cutGolf 6 1.6 TDI 764614 90mm tip - right side with cutGolf 6 1.6 TDI 764614 90mm tip left sideGolf 6 1.6 TDI 764614 90mm tip left sideGolf 6 1.6 TDI 764614 90mm tip - right side with cutGolf 6 1.6 TDI 764614 90mm tip - right side with cutGolf 6 1.6 TDI dual exhaust Supersprint 764644 + 764616 + 764698Golf 6 1.6 TDI dual exhaust Supersprint 764644 + 764616 + 764698Golf 6 1.6 TDI dual exhaust Supersprint 764644 + 764616 + 764698Golf 6 1.6 TDI dual exhaust Supersprint 764644 + 764616 + 764698Golf 6 1.6 TDI dual exhaust Supersprint 764644 + 764616 + 764698Golf 6 1.6 TDI dual exhaust Supersprint 764644 + 764616 + 764698
具有 ECC 認證
具有 ECC 認證
E.E.C.元件認證僅限於安裝於特定 Supersprint 認證的後排氣管。
E.E.C.元件認證僅限於安裝於特定 Supersprint 認證的後排氣管。
符合噪音法規 70/157/EEC。 然而，特定型號或引擎類型可能不包括在此排氣管合法發行的正式車輛清單中。
符合噪音法規 70/157/EEC。
然而，特定型號或引擎類型可能不包括在此排氣管合法發行的正式車輛清單中。
符合噪音法規 70/157/EEC。
符合噪音法規 70/157/EEC。
與 OEM 催化轉換器相容
與 OEM 催化轉換器相容
停產產品。售完即止
停產產品。售完即止
提供氧氣感測器的螺紋塞
提供氧氣感測器的螺紋塞
具有經典排氣設計的合格證書
具有經典排氣設計的合格證書
Systems for replacement of kat for OBD car models (with lambda sensors before and after the kat.)

These systems can only be used for racing purpose exclusively, in conjunction with the modifications of the engine management system. If used with a stock “ECU”, malfunctions may occur. All modifications must be carried out by qualified personnel only, under the liability of the car owner and at his expense.

Supersprint guarantee is limited to the quality, workmanship and correctly fitting to the intended car model for all race products.
