查找适合您汽车的 Supersprint 排气系统
品牌
Volkswagen
系列
VW GOLF
型号代码
VW GOLF VII

大众 高尔夫 VII GTD 2.0 (184 Hp) 2012 -> (声音发生器)

排气系统:
系统全部
100% Stainless steel system Ø55mm
100% Stainless steel system, Oversize Ø65mm - (for Sound Generator deleting) - Full kit only
ALTERNATIVE: - Right - Left exit system - (for Sound Generator deleting) - Rear bumper must be trimmed to fit - Full kit only
ALTERNATIVE: - Right - Left exit system - (for Sound Generator deleting) - For "GOLF VII GTI" rear bumper - Full kit only
ALTERNATIVE: - 100% Stainless steel right - left system for models with "Sport and Sound" package with Sound Generator - - Rear bumper must be trimmed to fit
ALTERNATIVE: - For models with "Sport and Sound" package with Sound Generator - For "GOLF VII GTI"
ALTERNATIVE: - For models with "Sport and Sound" package with Sound Generator - For "GOLF VII R" rear bumper model
筛选依据
组件
套件選項
Headers
Turbo Downpipe
Front Section
Mid Section
Rear Section
Tail pipe
Connecting pipe
价格 (€)
105.00 989.00
特征
具有 ECC 認證
E.E.C.元件認證僅限於安裝於特定 Supersprint 認證的後排氣管。
符合噪音法規 70/157/EEC。
然而,特定型號或引擎類型可能不包括在此排氣管合法發行的正式車輛清單中。
符合噪音法規 70/157/EEC。
與 OEM 催化轉換器相容
停產產品。售完即止
提供氧氣感測器的螺紋塞
具有經典排氣設計的合格證書
别名: VW GOLF mk7 GTD sound generator 的运动型排气管
  • 排氣系統
  • 圖片
  • 專家回覆
  • 詞彙
  • 警告事項

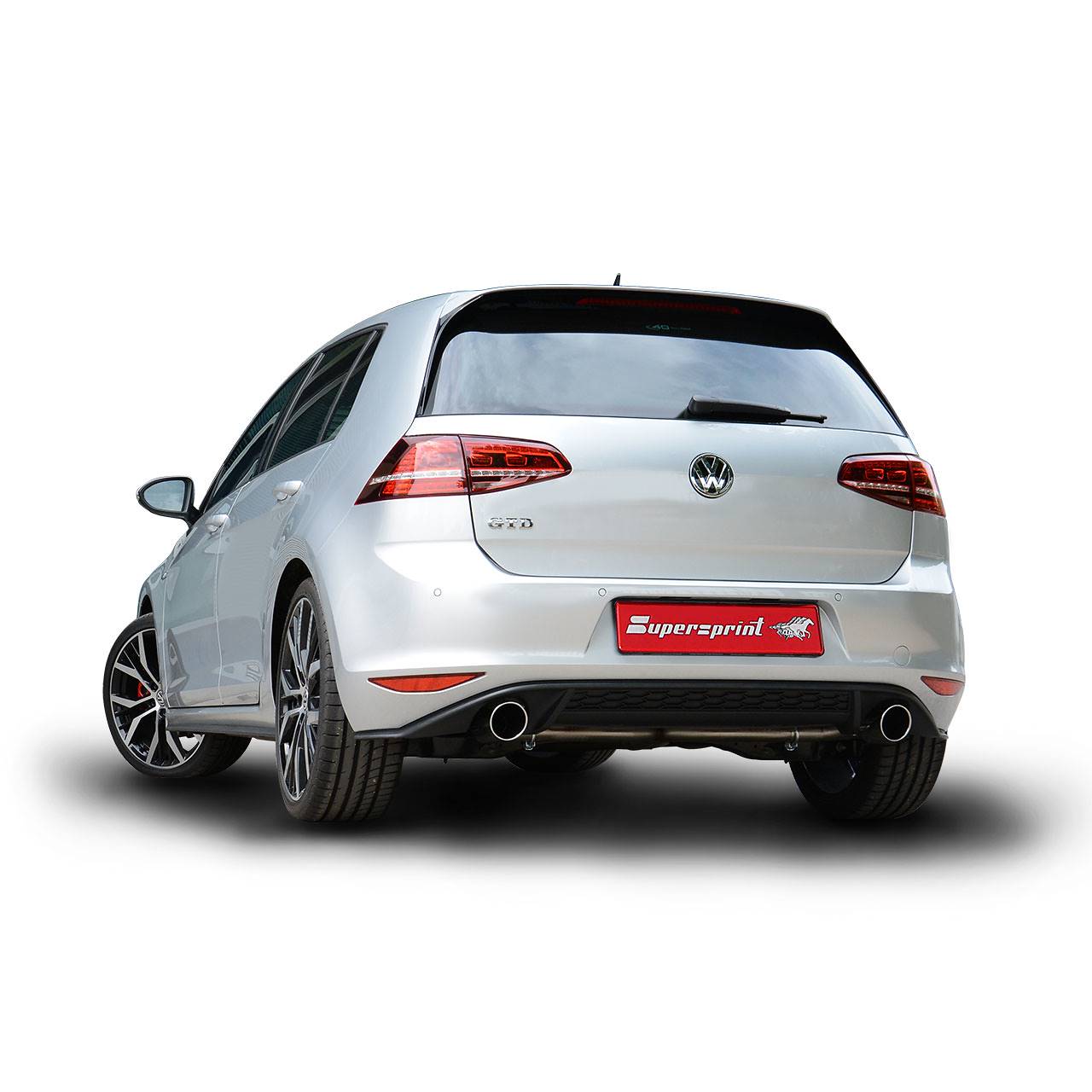

Sport exhaust Golf MK7 GTD 2.0 tdi 184cv

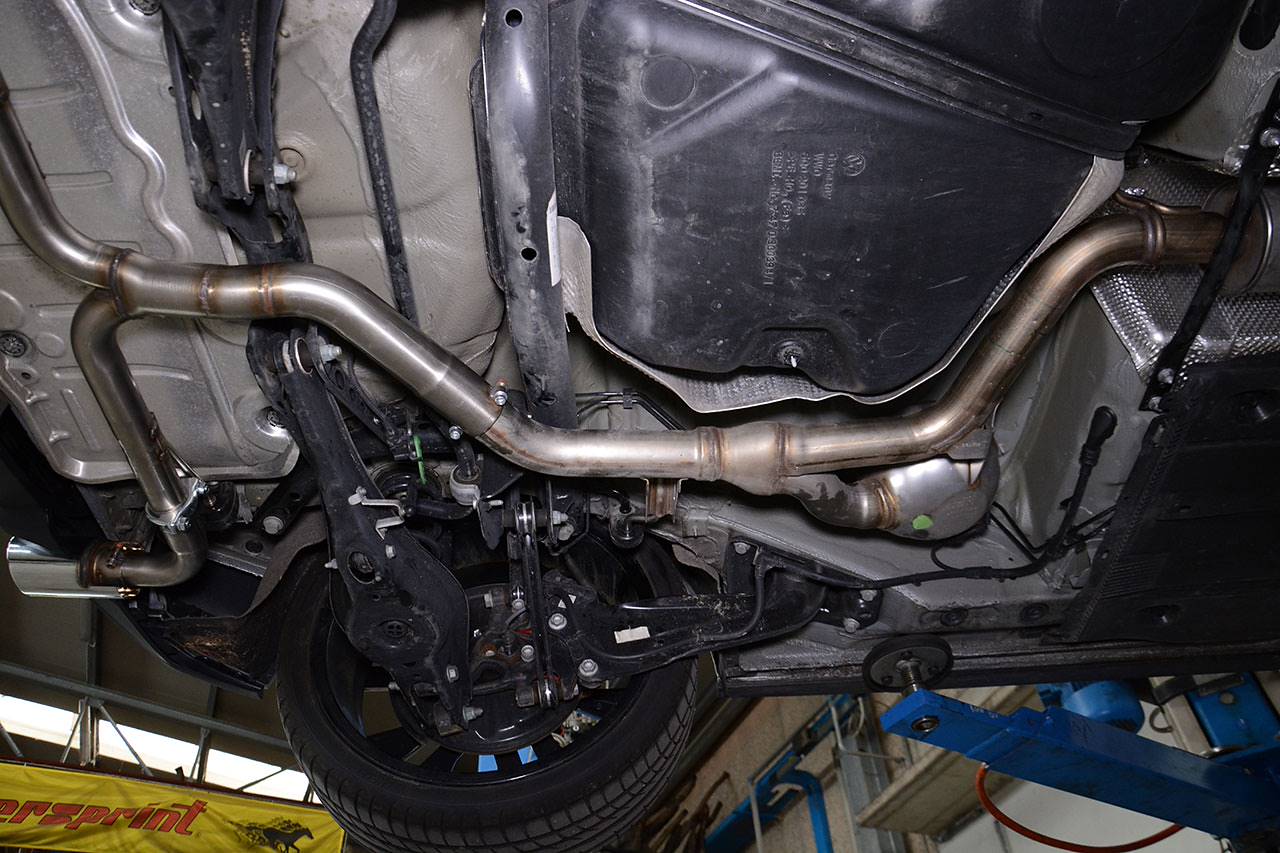

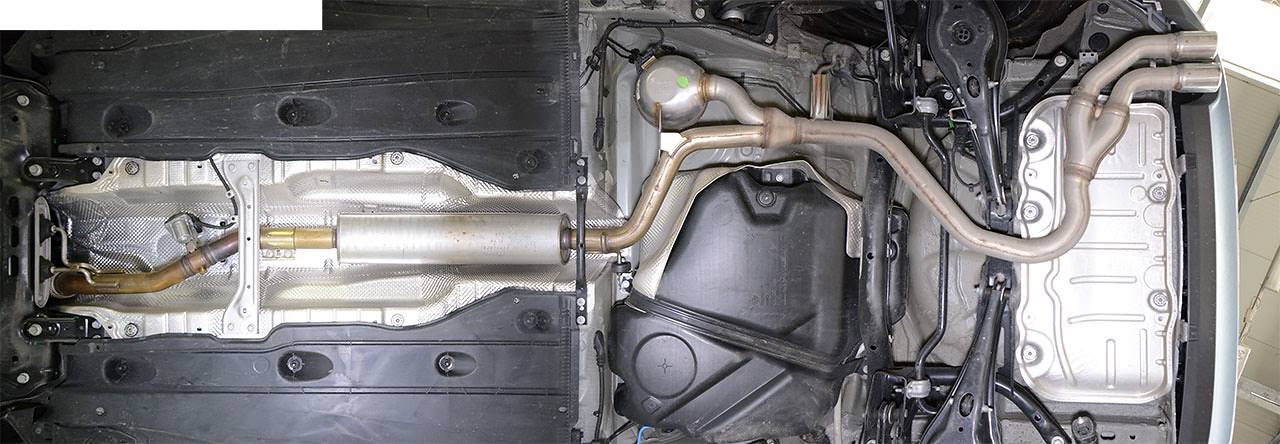

For the version without the sound generator the Supersprint exhaust system is composed by:

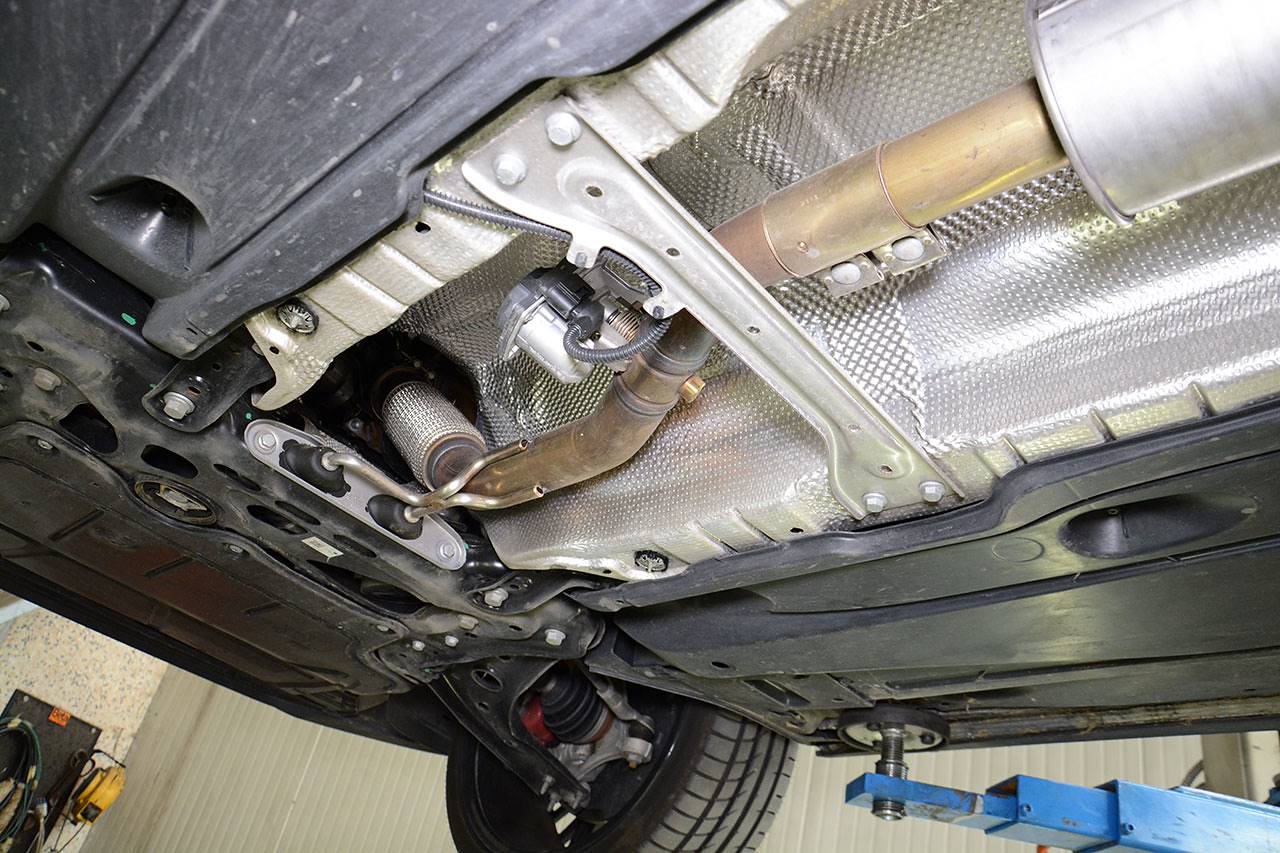

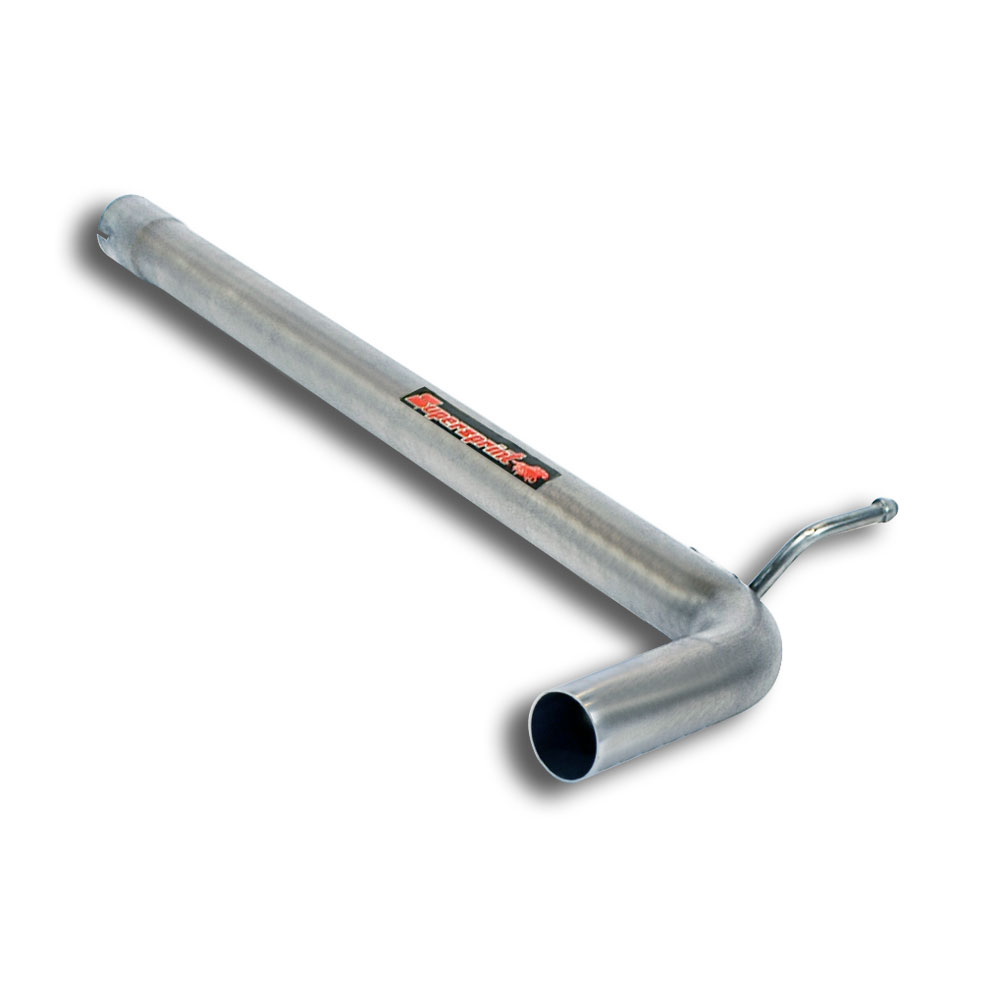

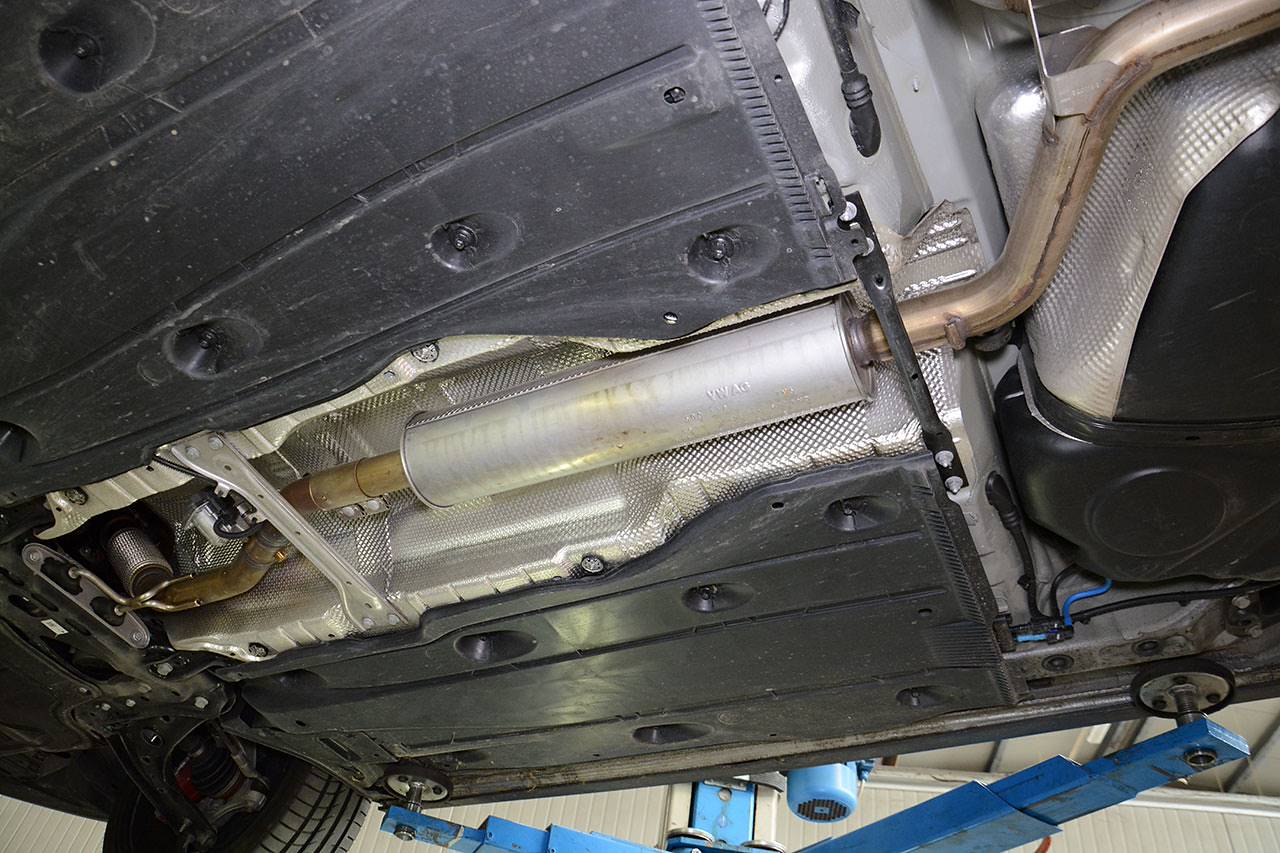

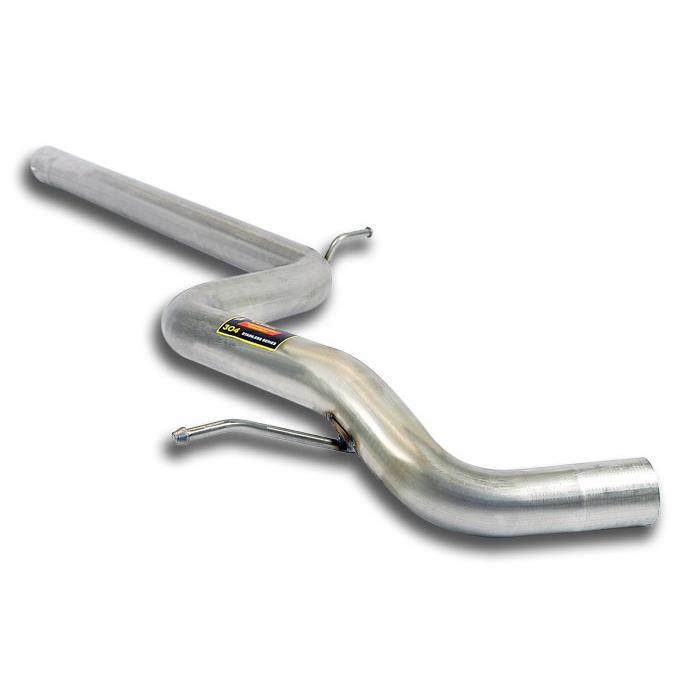

-  Centre pipe to replace the OEM centre resonator

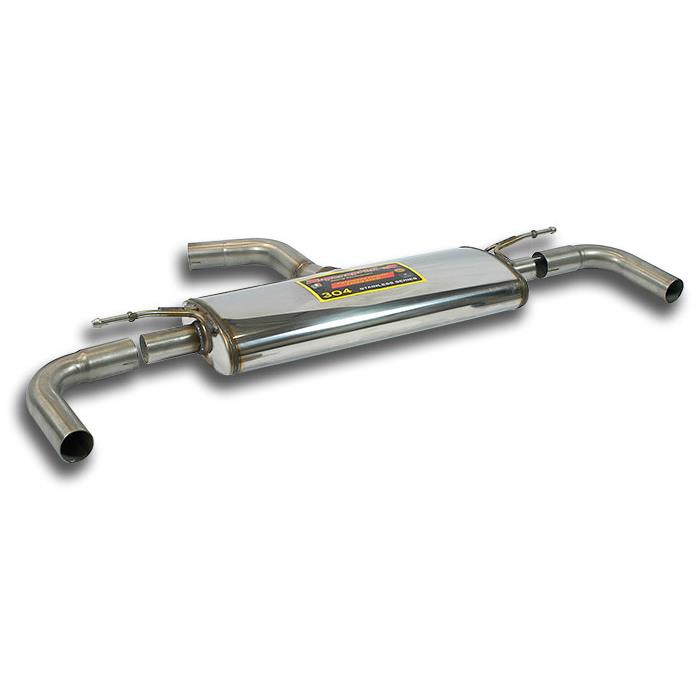

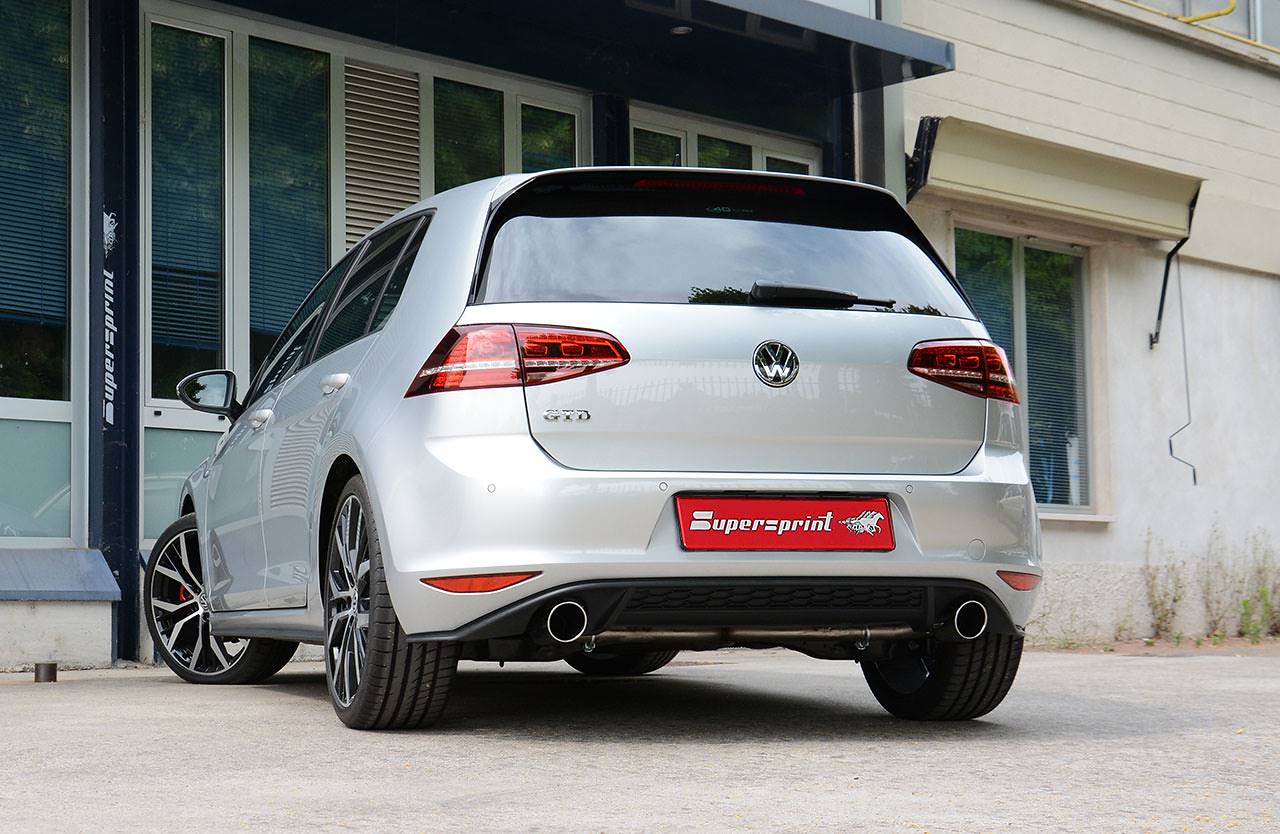

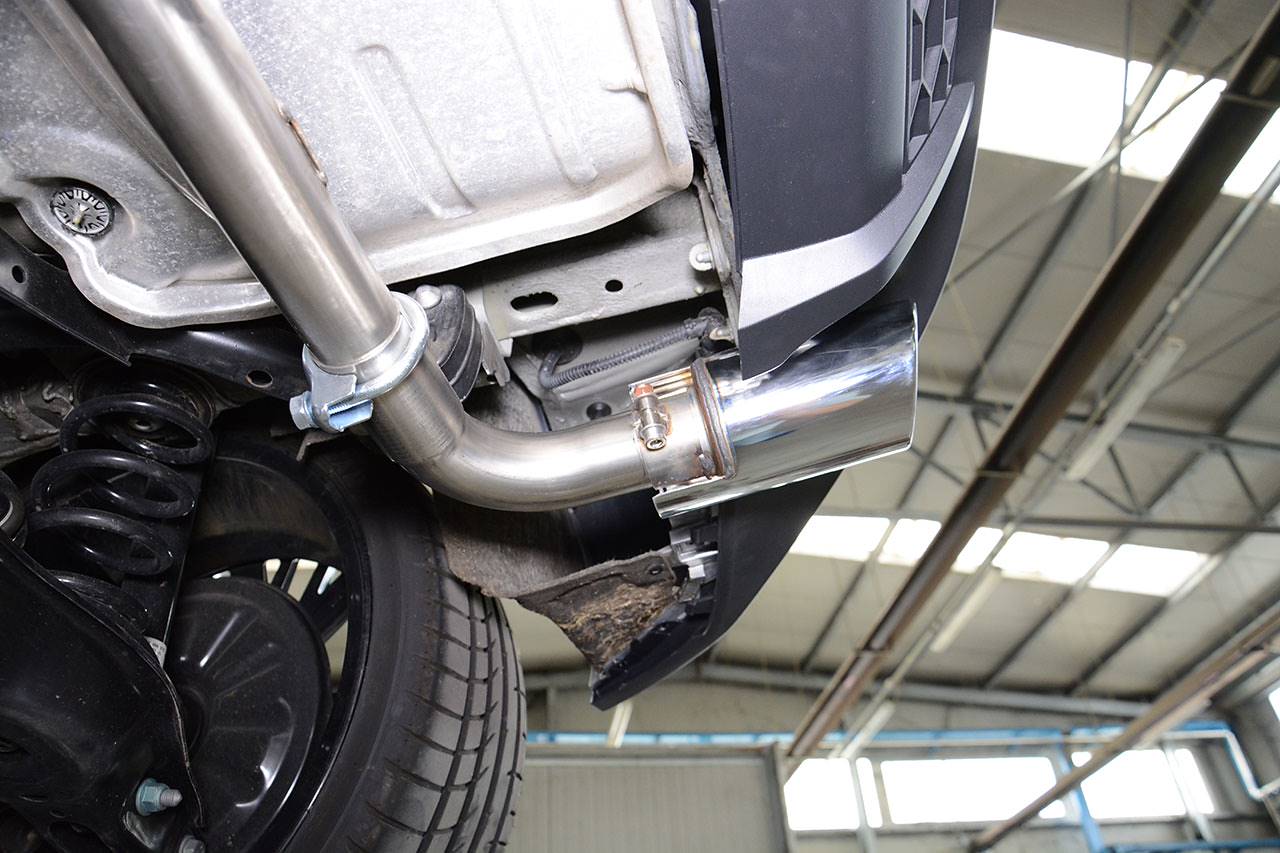

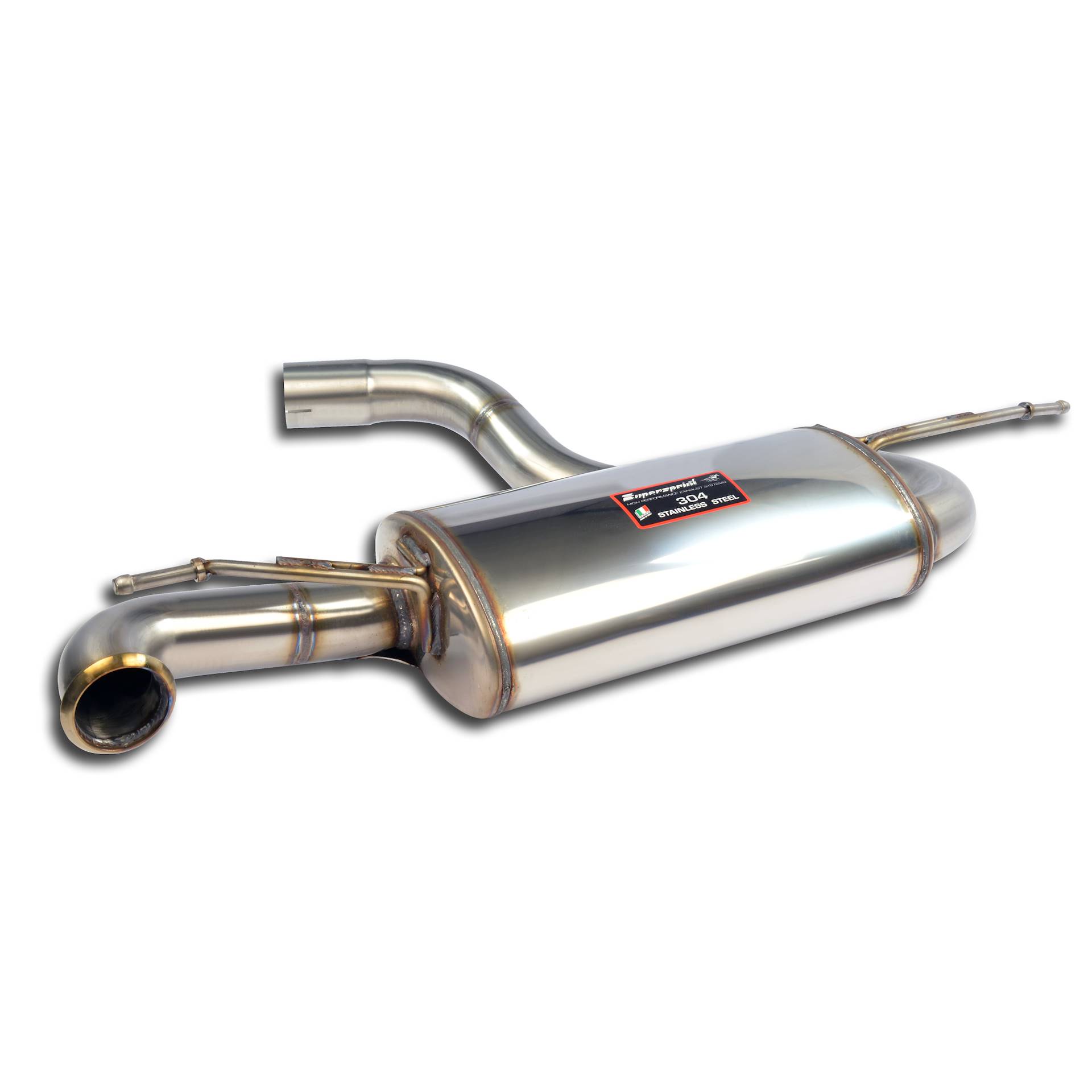

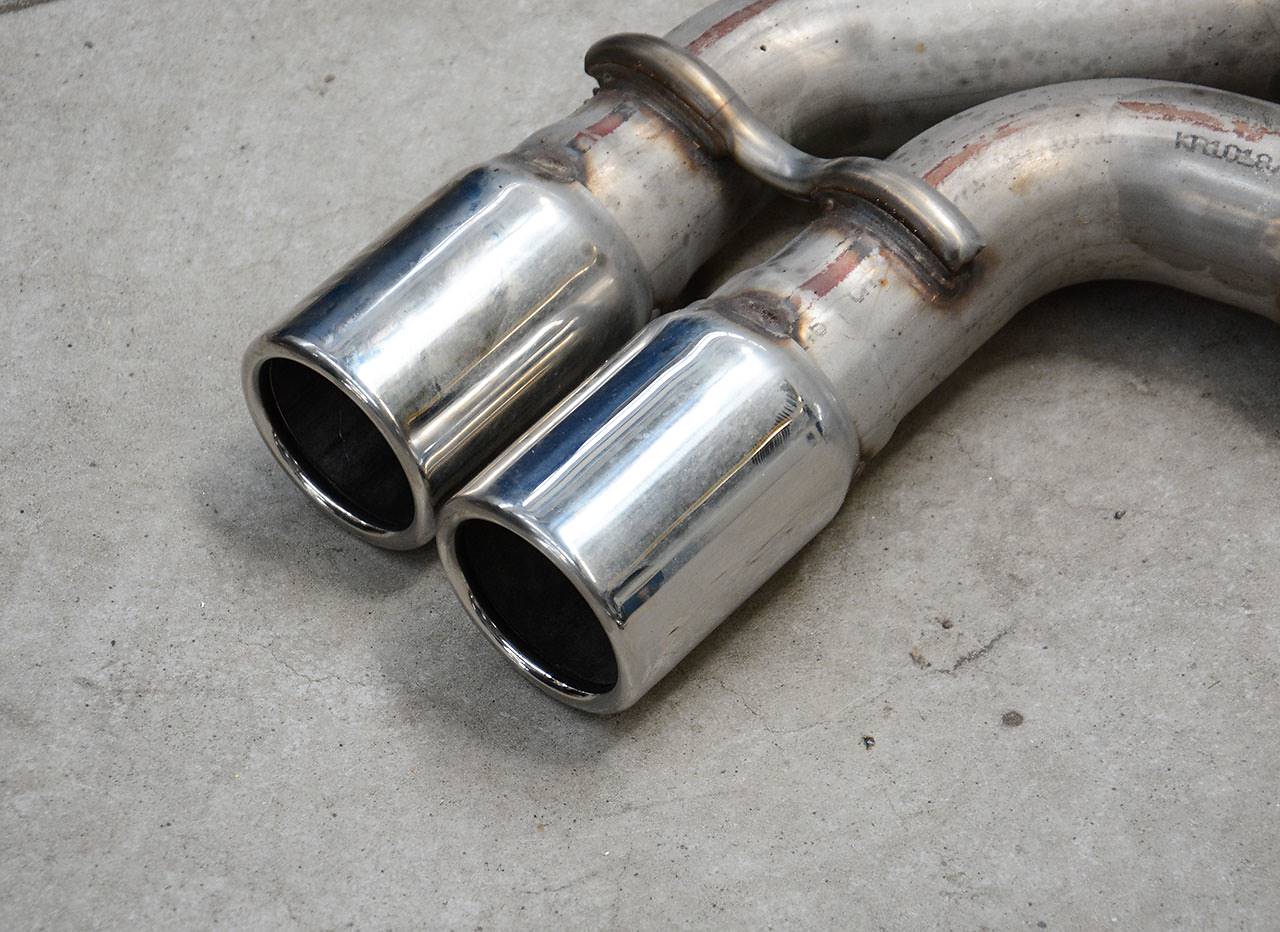

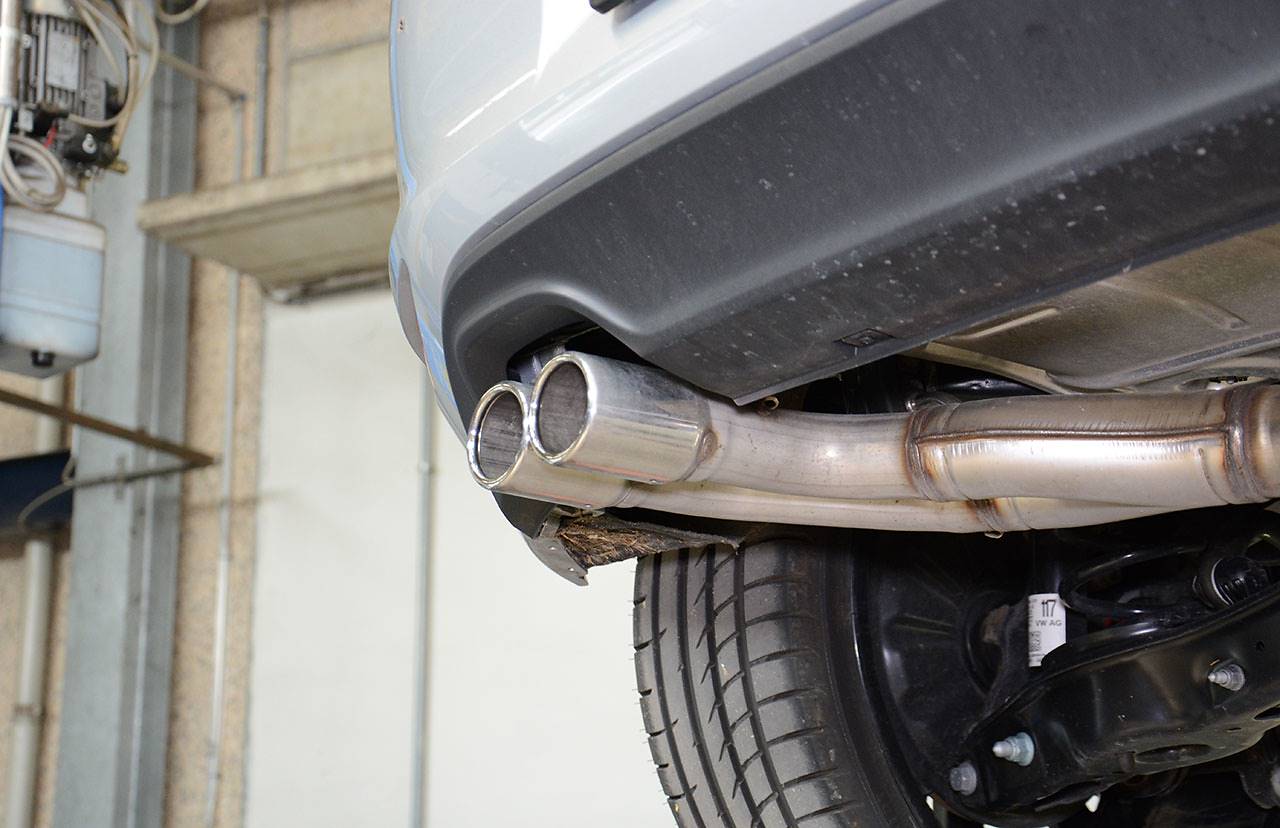

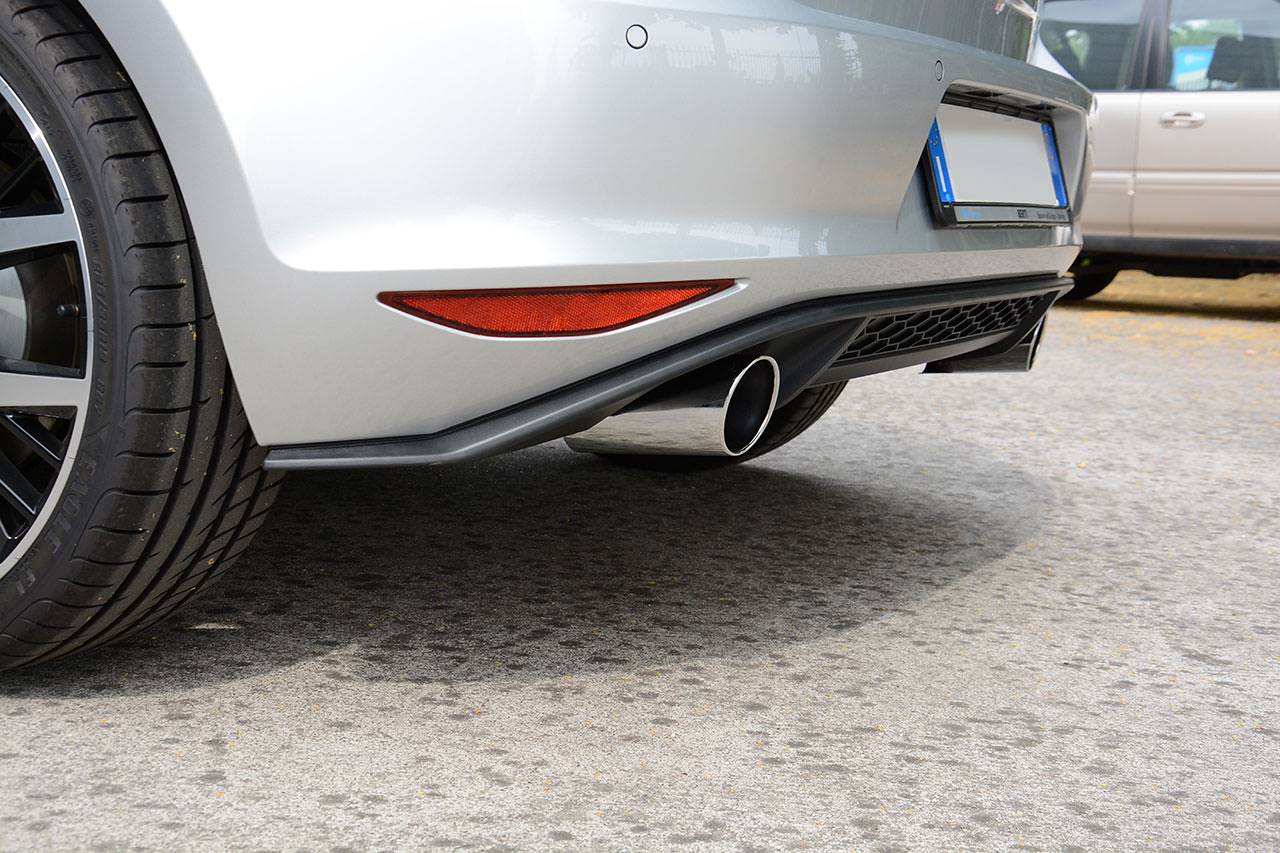

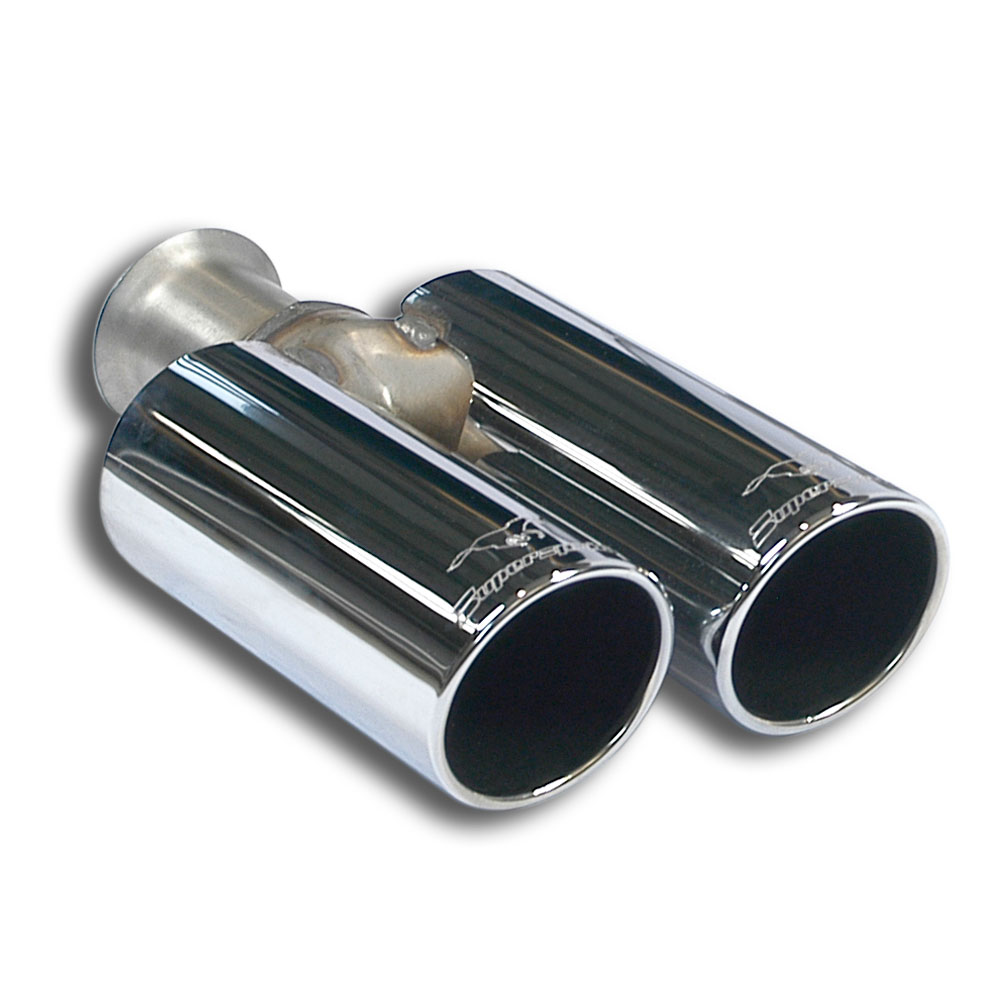

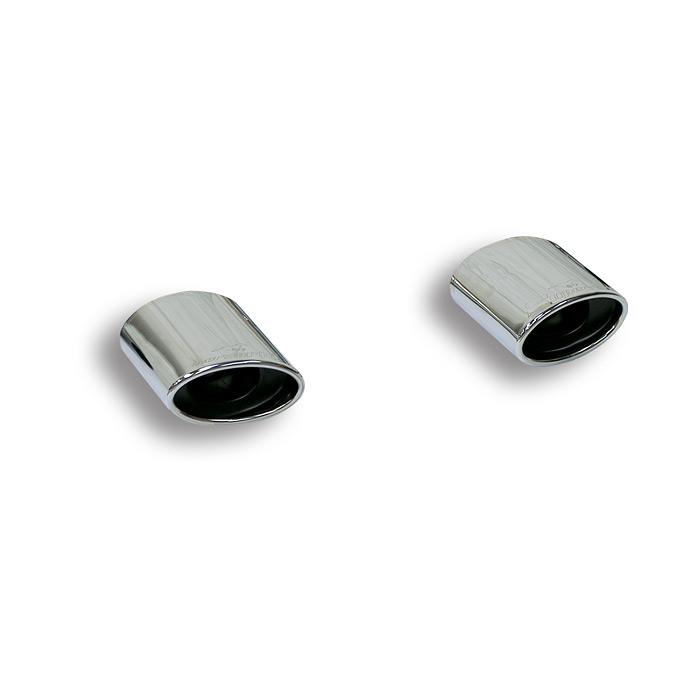

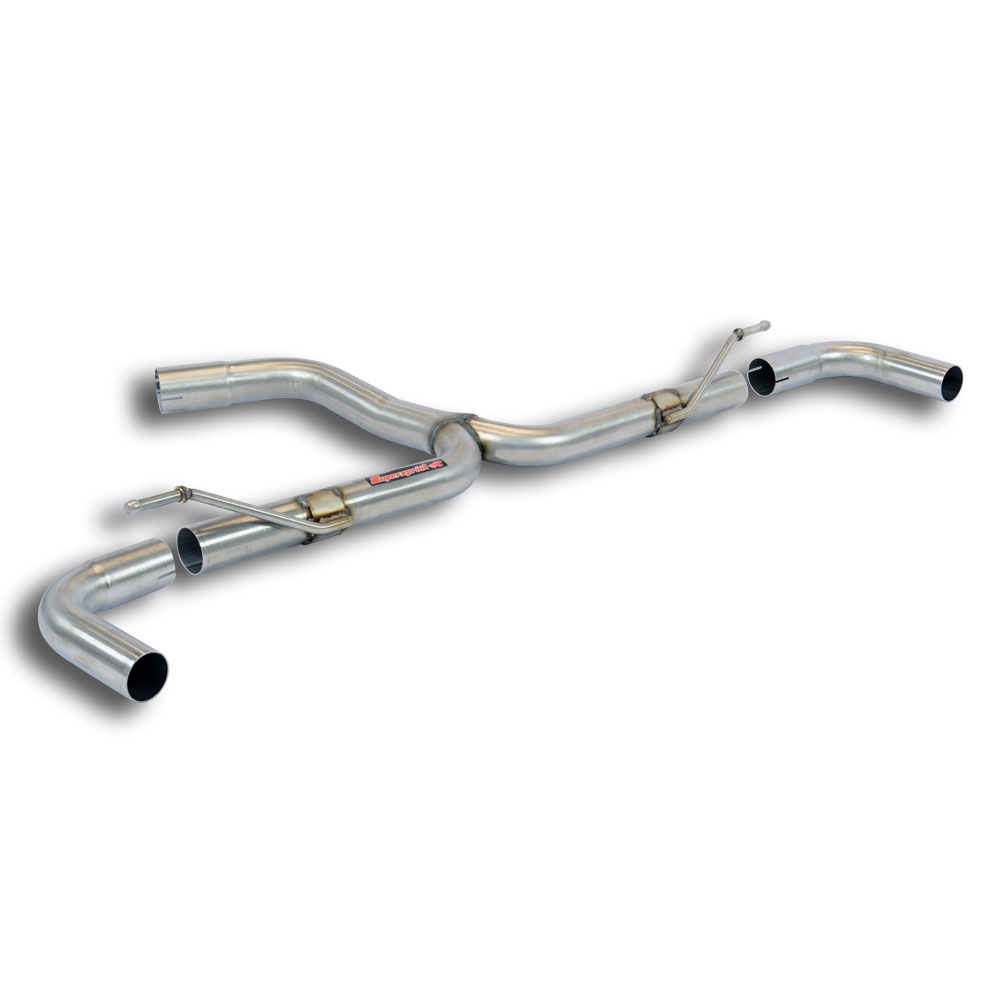

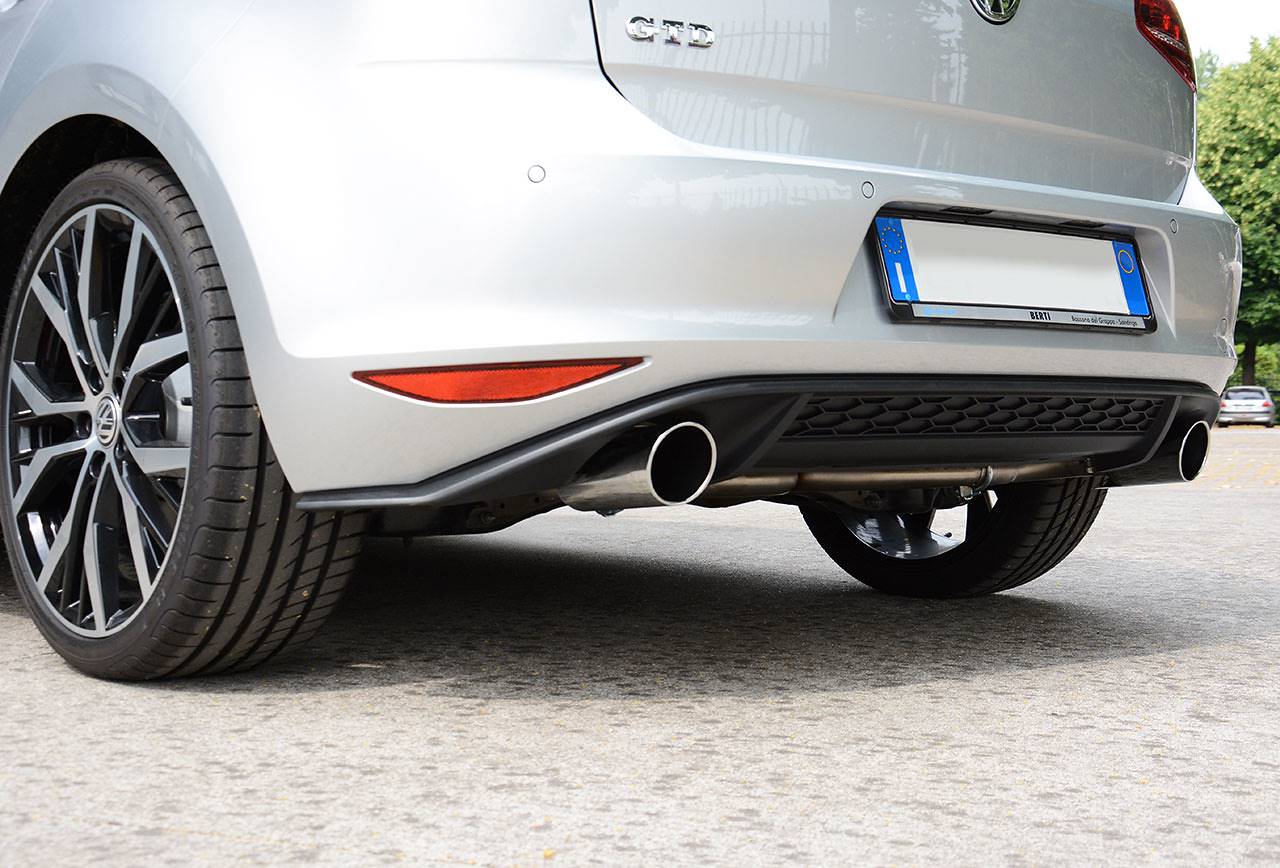

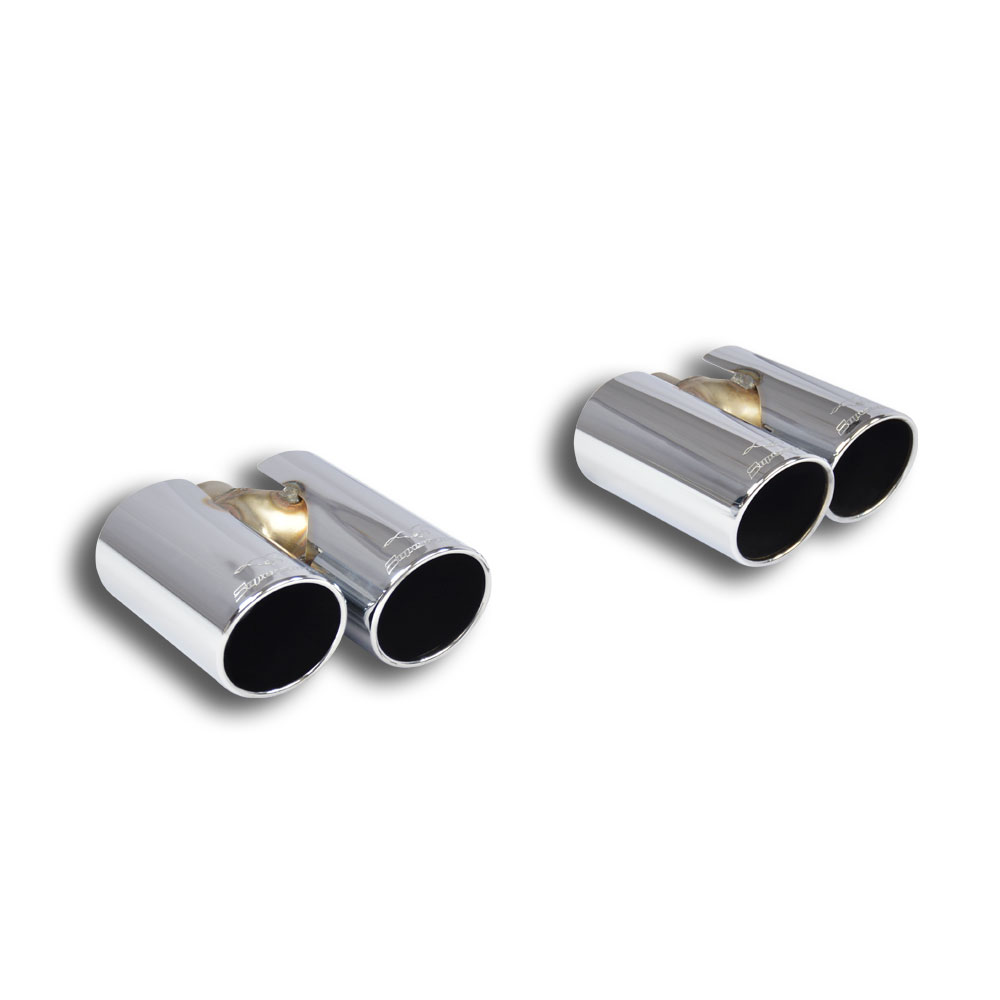

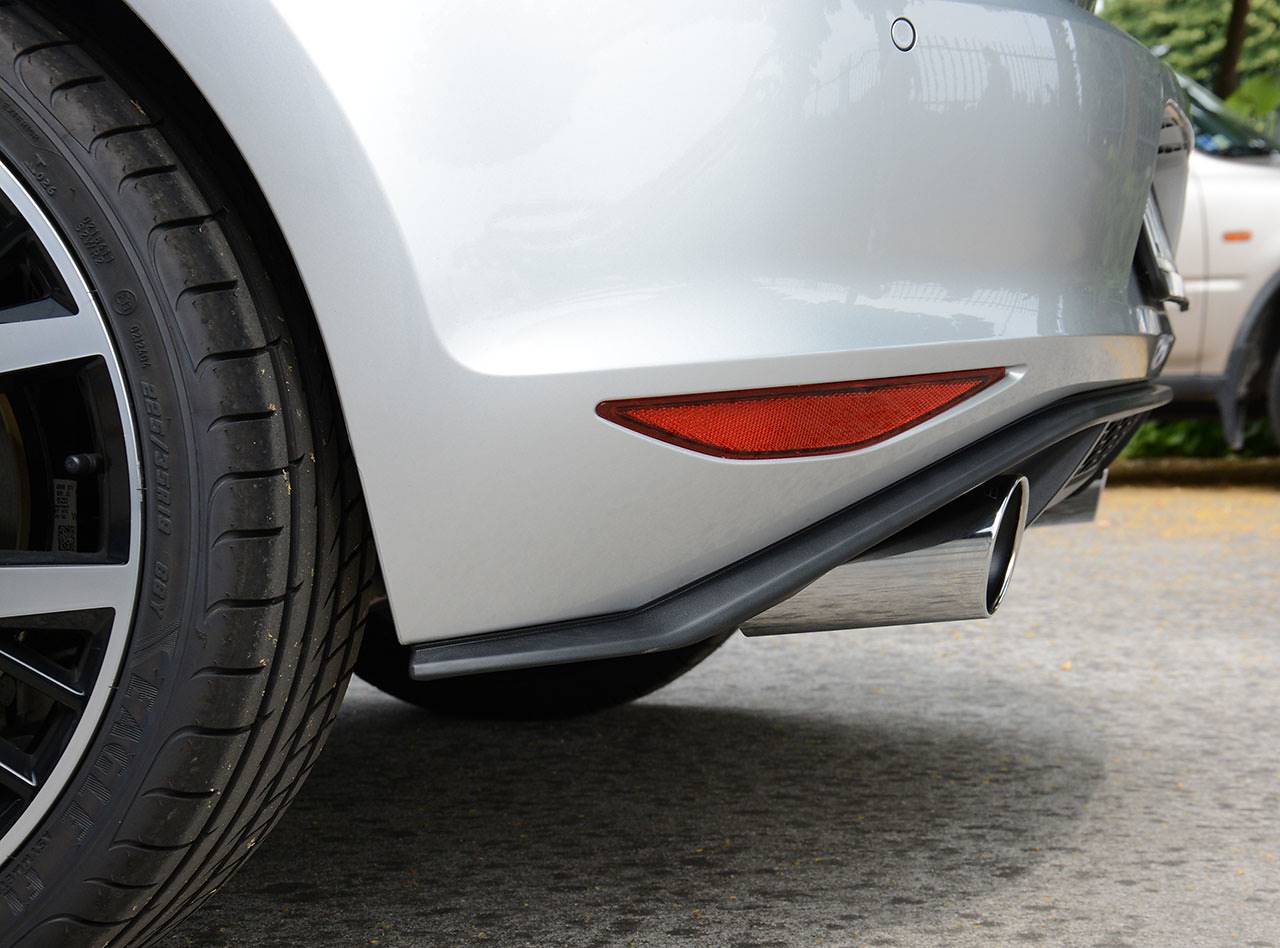

- Rear E.E.C. homologated muffler or rear pipe, with exit on the left for stock bumper, dual exhaust for GTI diffuser (90 or 100mm tips) or quad exhaust for R diffuser (oval 100x75mm tips)
The best sound comes with the straight pipes, without the silencers.

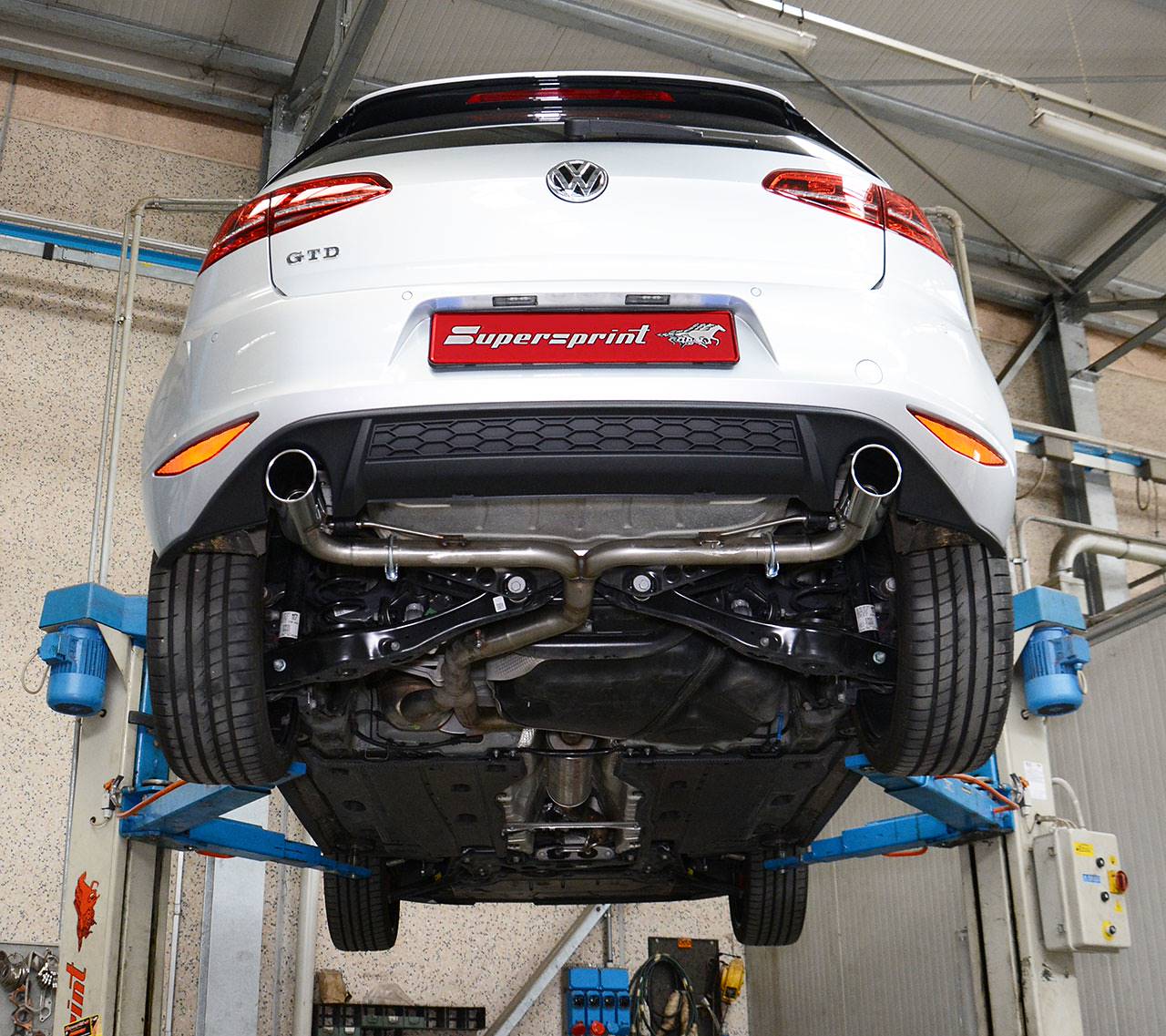

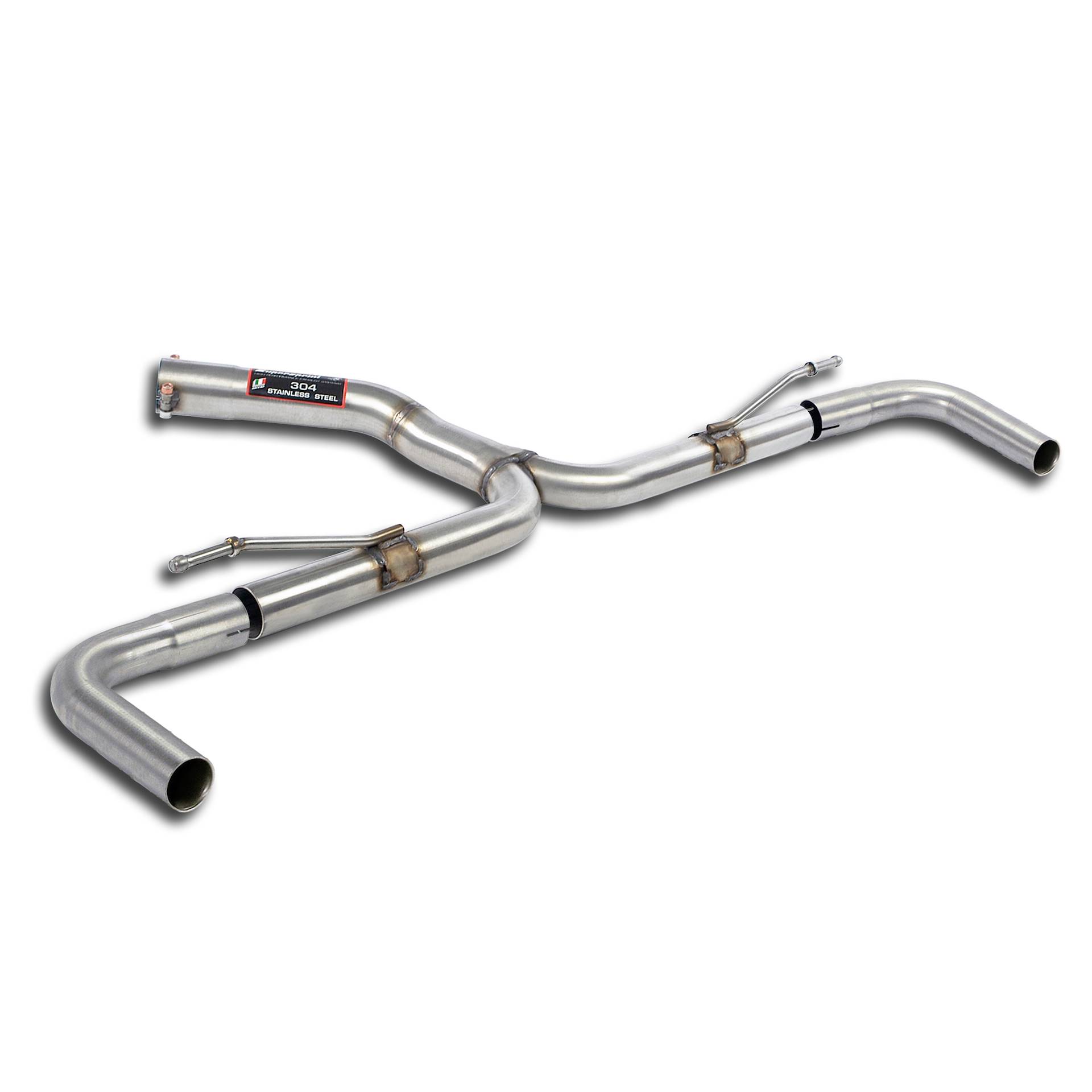

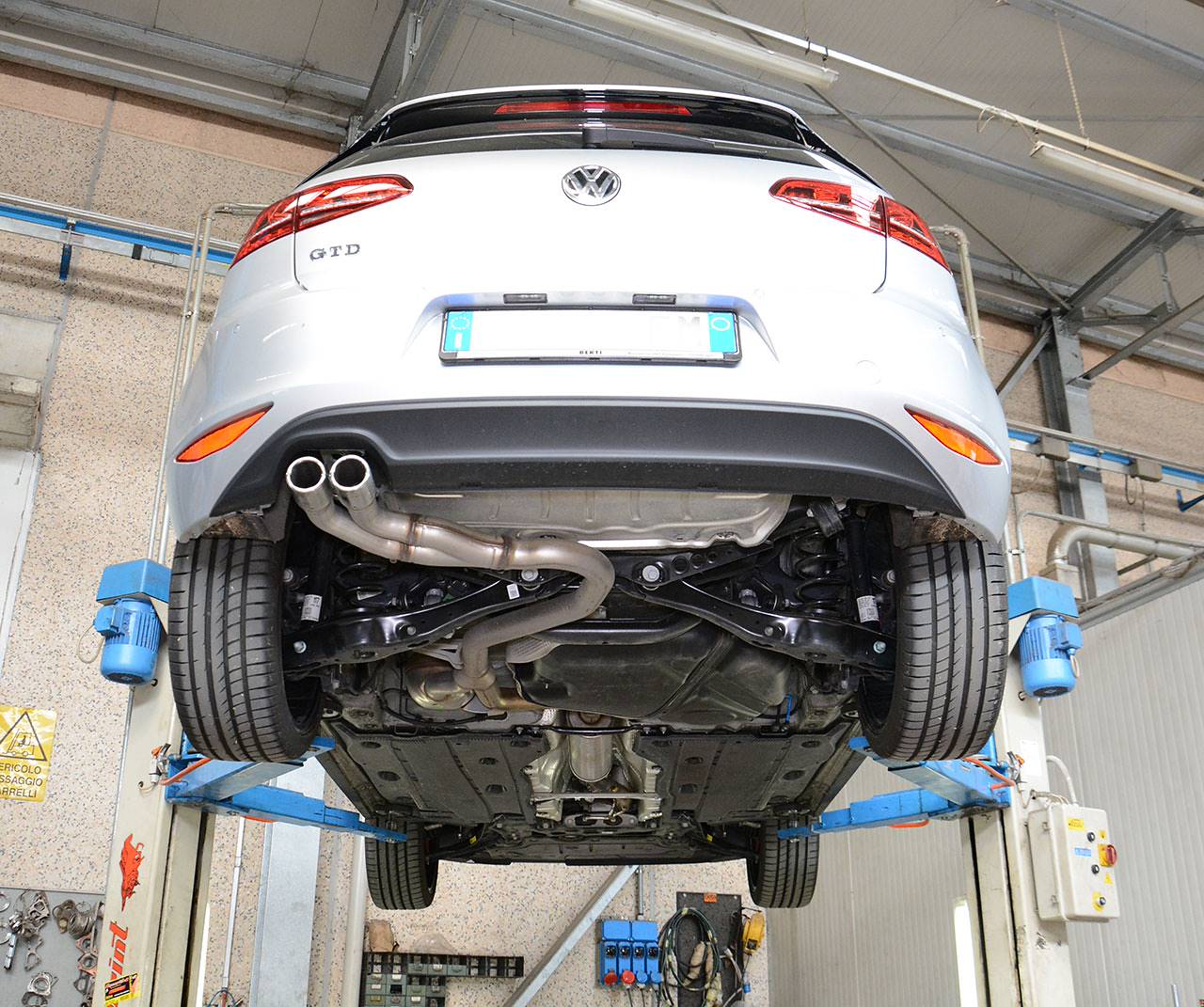

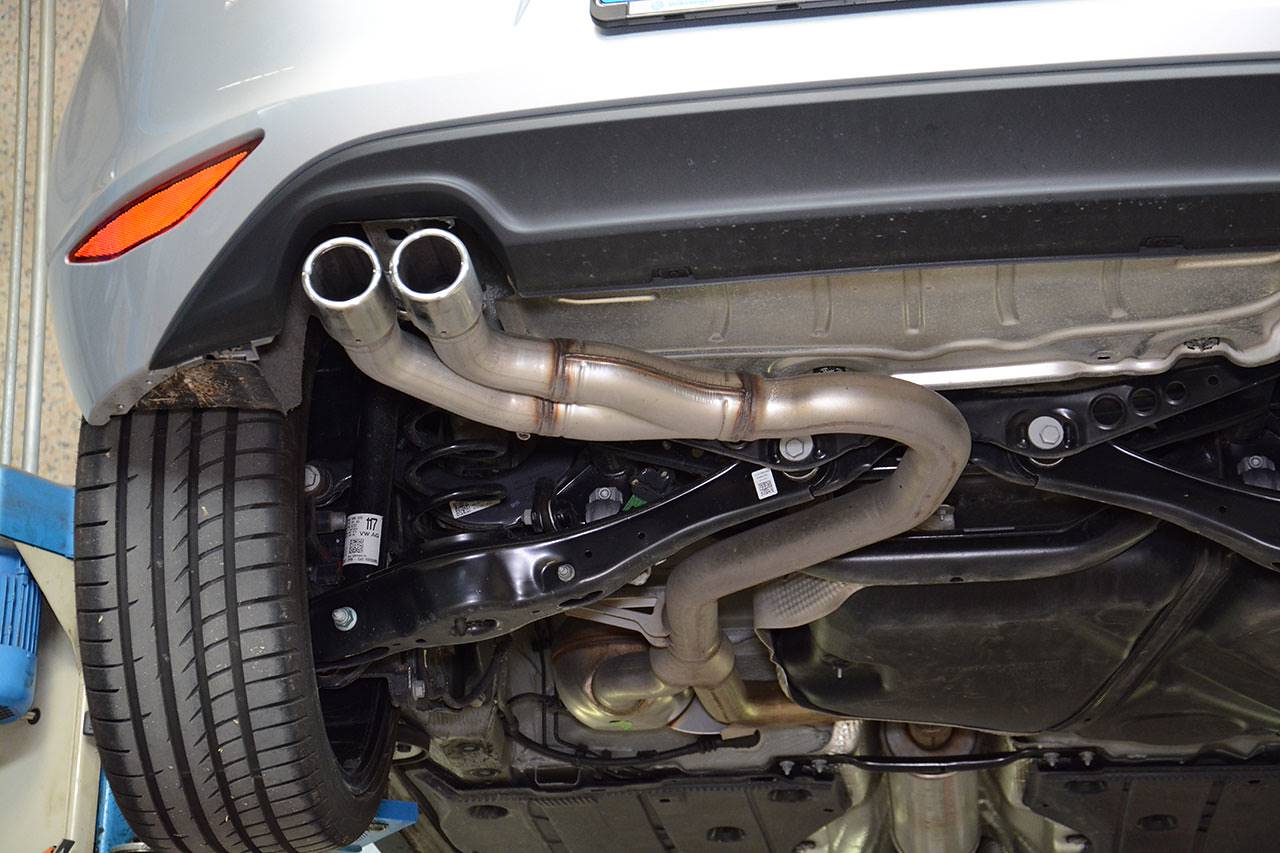

The cars equipped with the sound generator already have a rear unsilenced pipe, so the Supersprint rear pipes for GTI or R conversions are only for the look, no difference in sound.
There’s also a centre pipe to replace the OEM resonator, so the real engine sound can add up to the electronic generated noise.

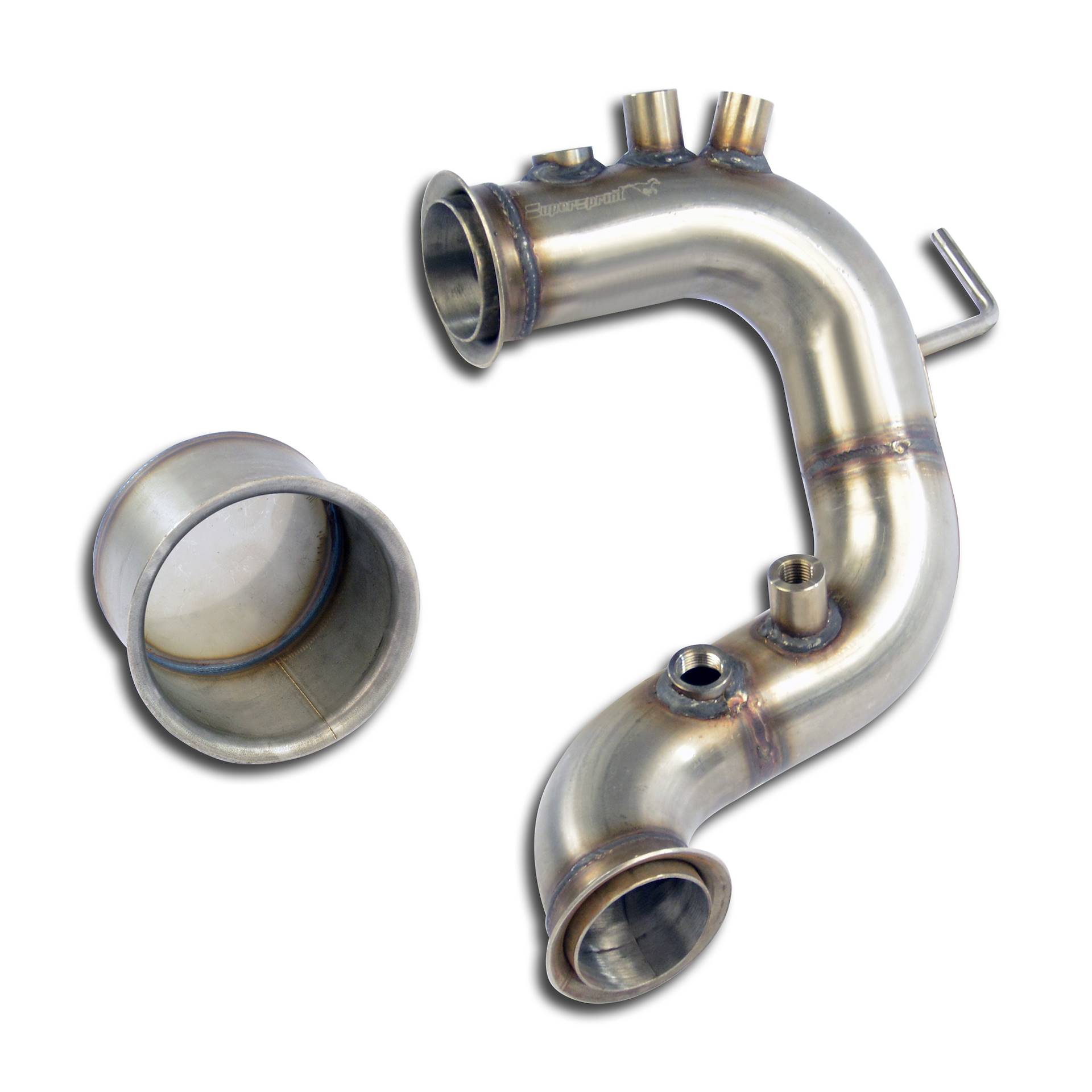

Also available the turbo downpipe for DPF (diesel particulate filter) removal, also known as DPF-delete.
Currently available for Euro 5B models, with 4 sensor bungs (O2, T and P), or with just the O2 / lambda bung.
Includes also the secondary EGR cap.
Requires ECU tuning for the proper working of the vehicle.
The electric flow adjustment valve and the flex pipe are left untouched.

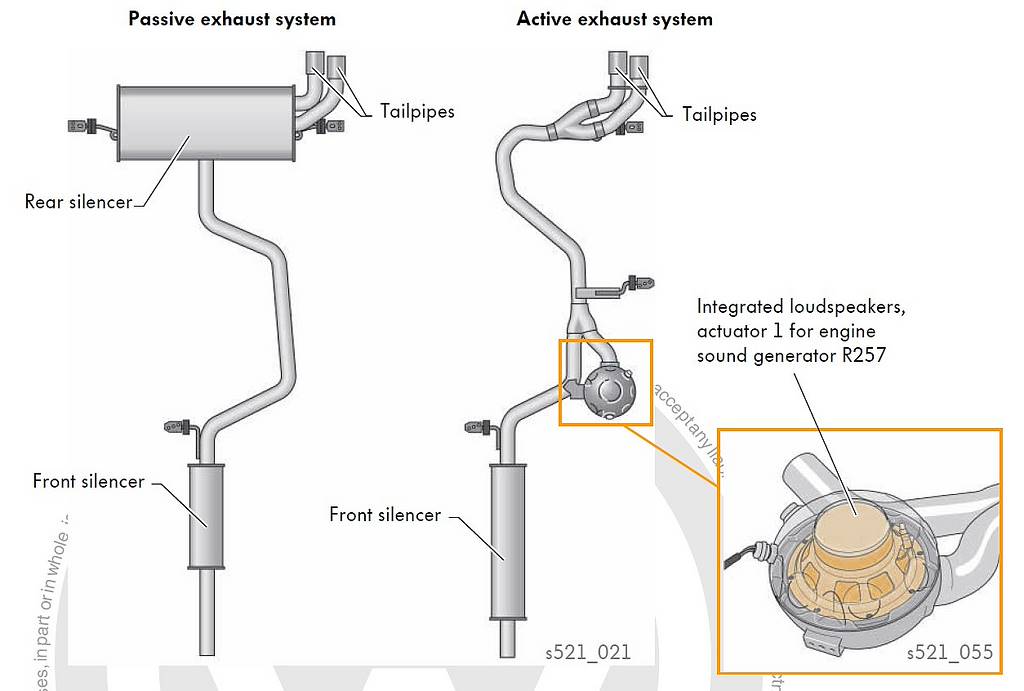

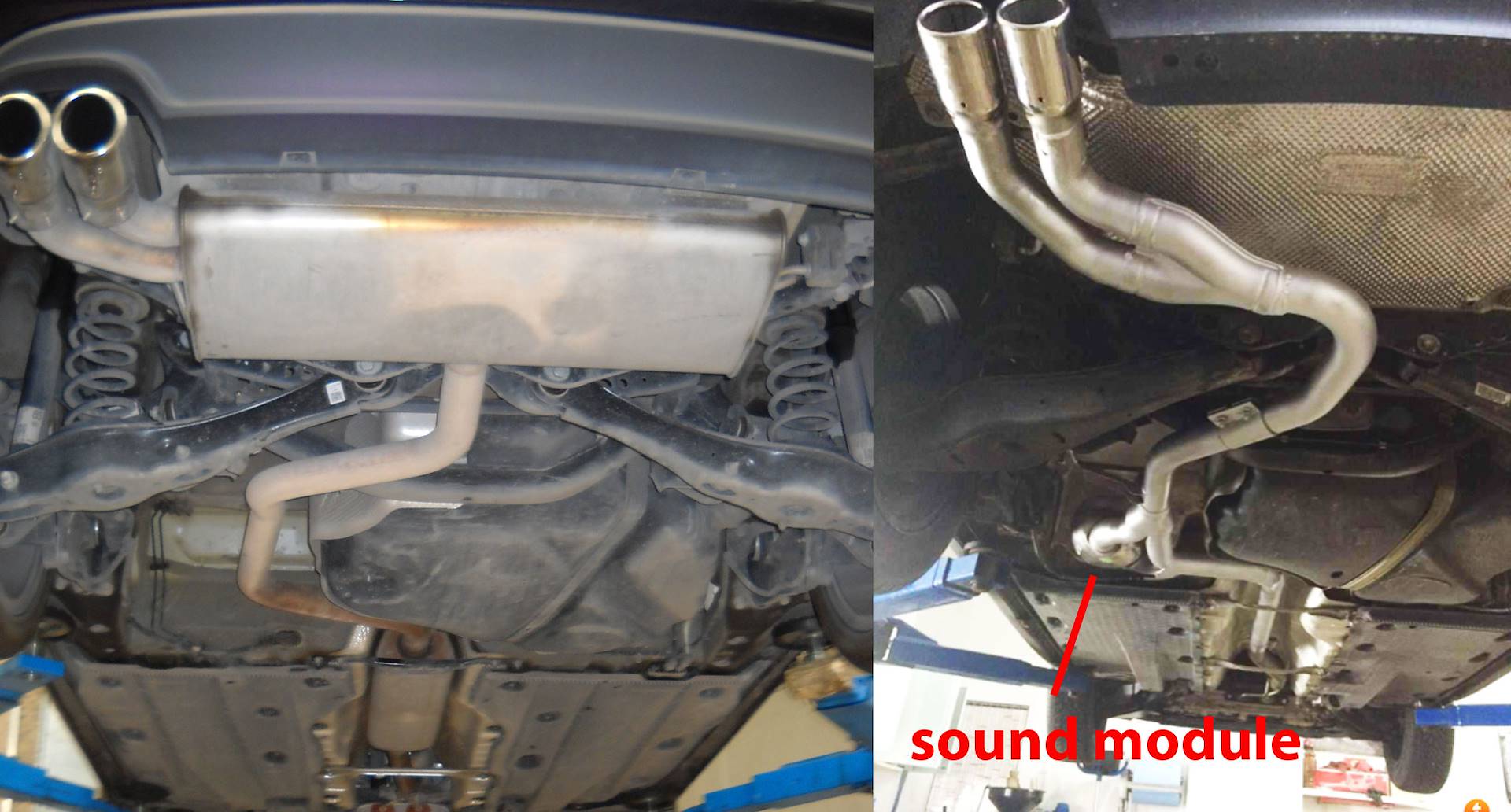

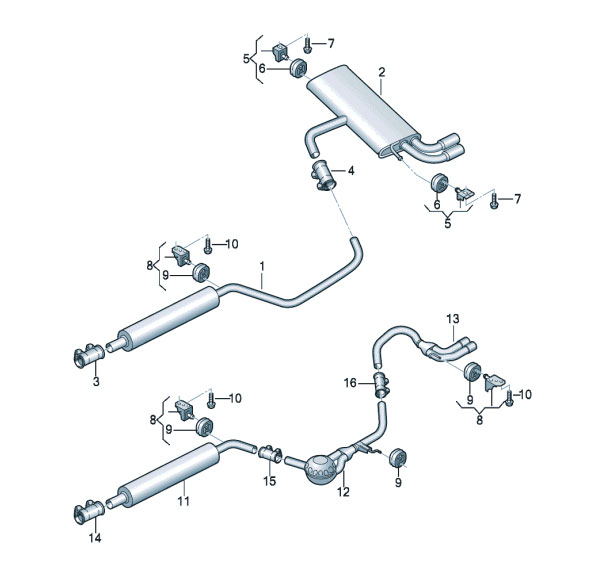

Golf VII GTD: differences between exhausts with and without the Sound Generator (Sport & Sound)

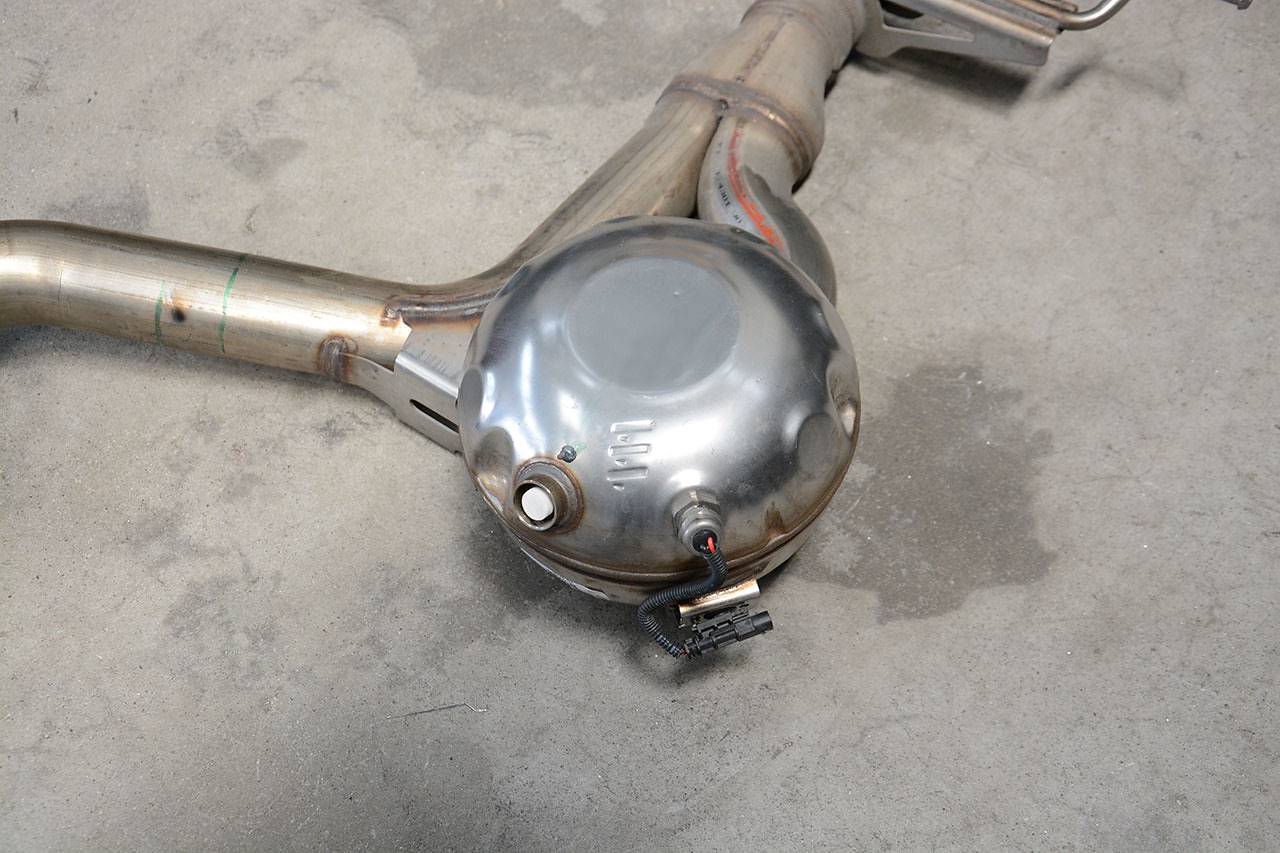

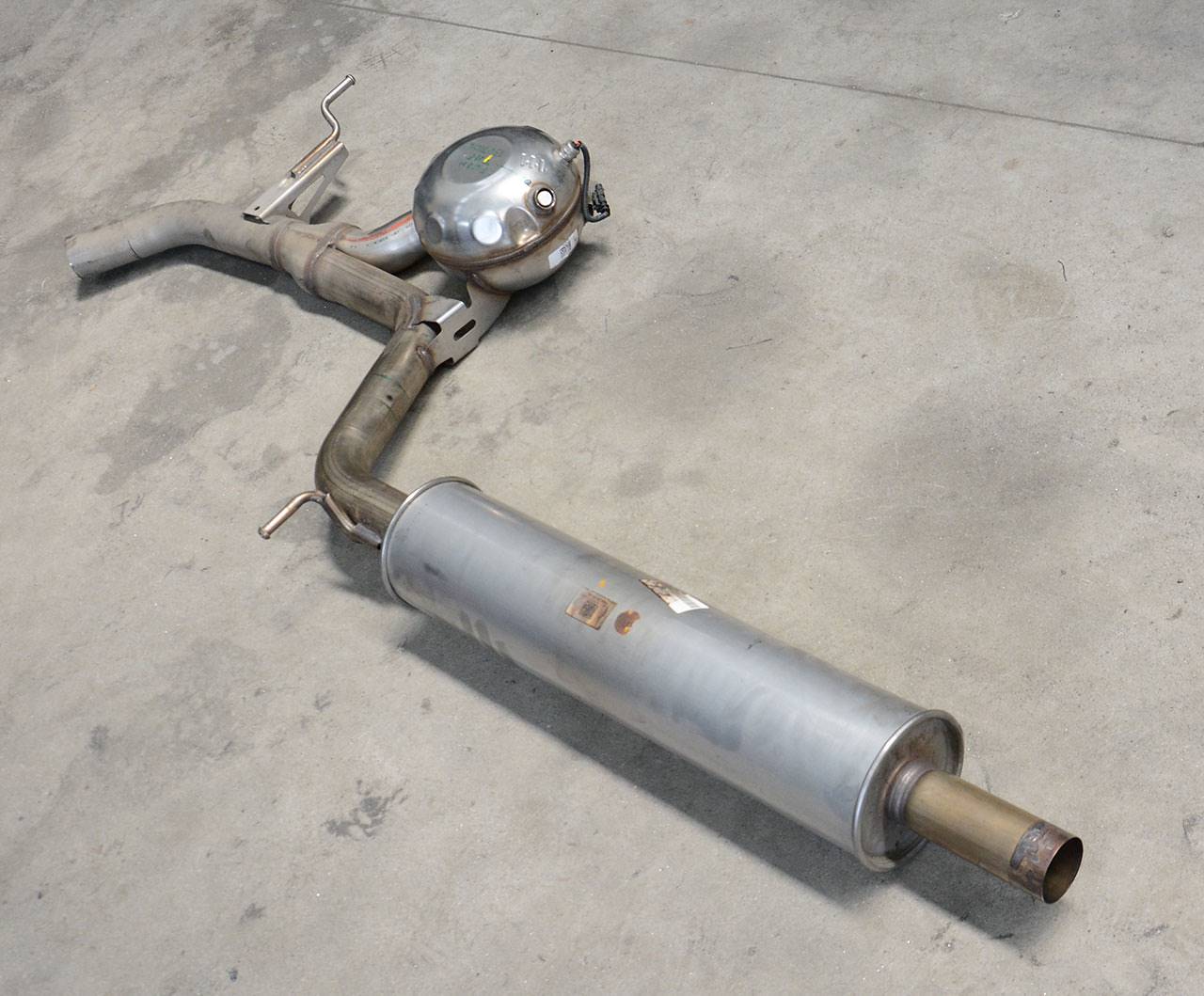

The Volkswagen/Audi group has recently introduced on some diesel models the "Sound Generator", also known as "sound module".
It's a speaker fitted to the exhaust system, to produce a more involving, petrol-like sound on diesel motors which are very quiet with the diesel particulate filter.
The section downstream of the sound generator must be pipe-only, without any silencer.

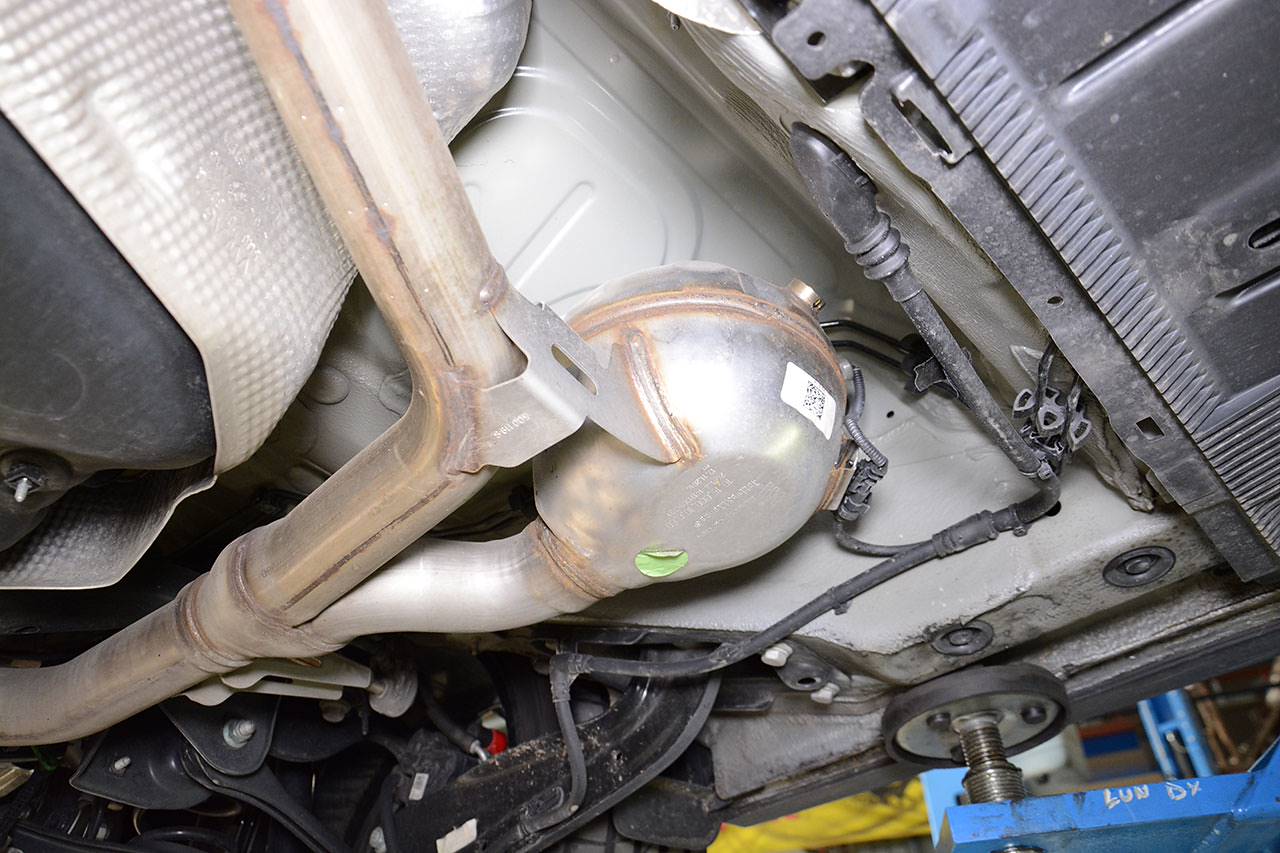

In the case of the Golf mk7 GTD, when the "Sport & Sound" option is selected during the configuration and purchase of the car, the exhaust is equipeed wih the speaker, placed in the central section.

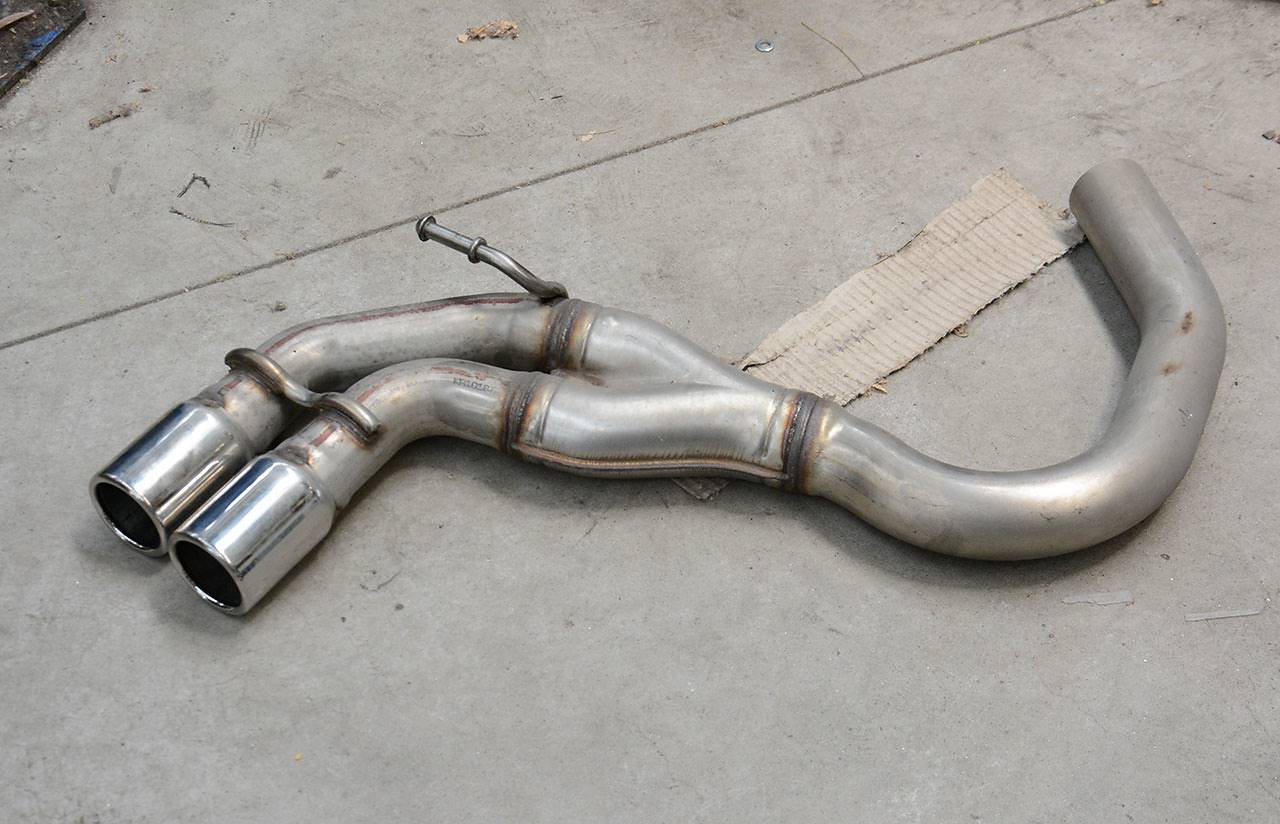

The rear section is replaced by a pipe-only component, without the muffler.
There are differences in the angle of the pipes and also the diameter that goes from 55 to 60.
For this reason specific exhaust components must be used.
具有 ECC 認證
具有 ECC 認證
E.E.C.元件認證僅限於安裝於特定 Supersprint 認證的後排氣管。
E.E.C.元件認證僅限於安裝於特定 Supersprint 認證的後排氣管。
符合噪音法規 70/157/EEC。
然而,特定型號或引擎類型可能不包括在此排氣管合法發行的正式車輛清單中。
符合噪音法規 70/157/EEC。
然而,特定型號或引擎類型可能不包括在此排氣管合法發行的正式車輛清單中。
符合噪音法規 70/157/EEC。
符合噪音法規 70/157/EEC。
與 OEM 催化轉換器相容
與 OEM 催化轉換器相容
停產產品。售完即止
停產產品。售完即止
提供氧氣感測器的螺紋塞
提供氧氣感測器的螺紋塞
具有經典排氣設計的合格證書
具有經典排氣設計的合格證書
Systems for replacement of kat for OBD car models (with lambda sensors before and after the kat.)

These systems can only be used for racing purpose exclusively, in conjunction with the modifications of the engine management system. If used with a stock “ECU”, malfunctions may occur. All modifications must be carried out by qualified personnel only, under the liability of the car owner and at his expense.

Supersprint guarantee is limited to the quality, workmanship and correctly fitting to the intended car model for all race products.
